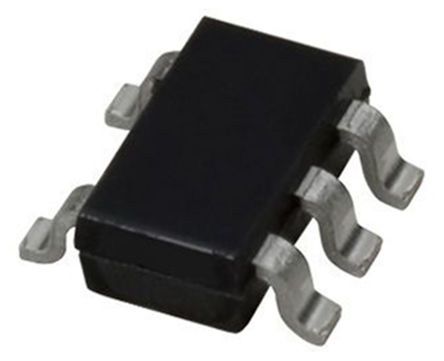

SN74AHC1G14DCKR

TEXAS INSTRUMENTS  SN74AHC1G14DCKR  非门, ACH系列, 施密特触发, 1门, 1输入, 8 mA, 2V至5.5V, SC-70-5

逻辑类型Logic Type| 反相施密特触发器 Inverting Schmitt trigger \---|--- 电路数Number of Circuits| 1 输入数Number of Inputs| 1 电源电压VccVoltage - Supply| 2v~5.5v 静态电流IqCurrent - Quiescent Max| 10uA 输出高，低电平电流Current - Output High, Low| -8mA,8mA 低逻辑电平Logic Level - Low| 0.1v~0.44v 高逻辑电平Logic Level - High| 1.9V~3.8V 传播延迟时间@Vcc，CLMax Propagation Delay @ V, Max CL| 7ns @ 5V，50pF Description & Applications| SINGLE SCHMITT-TRIGGER INVERTER GATE ；Operating Range of 2 V to 5.5 V
Max tpd of 10 ns at 5 V Low Power Consumption, 10-µA Max ICC ±8-mA Output Drive at 5 V
Latch-Up Performance Exceeds 250 mA Per JESD 17 描述与应用| 单一的施密特触发器逆变器门;2 V至5.5 V的工作范围 最大5 V时为10 ns吨 低功耗，10μA最大ICC ±8 mA输出驱动在5 V 闭锁性能超过250 mA每 JESD17
