DUAL 4比1通道模拟多路复用器/解复用器 DUAL 4 TO 1 CHANNEL ANALOG MULTIPLEXER /DEMULTIPLEXER
This dual 4-to-1 CMOS analog multiplexer/demultiplexer is pin compatible with the 4052 function and also features injection-current effect control. This feature has excellent value in automotive applications where voltages in excess of normal supply voltages are common.
The injection-current effect control allows signals at disabled analog input channels to exceed the supply voltage without affecting the signal of the enabled analog channel. This eliminates the need for external diode/resistor networks typically used to keep the analog channel signals within the supply voltage range.
电源电压DC 2.00V ~ 6.00V
输出接口数 2
触点类型 4PST
供电电流 2 µA
电路数 2
通道数 2
位数 4
传送延迟时间 38.0 ns
输入数 8
工作温度Max 125 ℃
工作温度Min -40 ℃
电源电压 2V ~ 6V
安装方式 Surface Mount

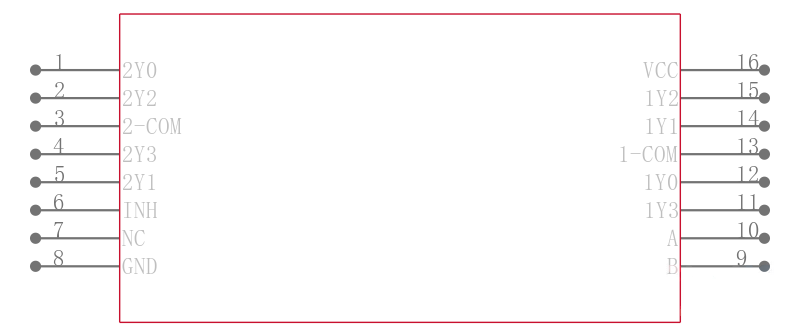

引脚数 16

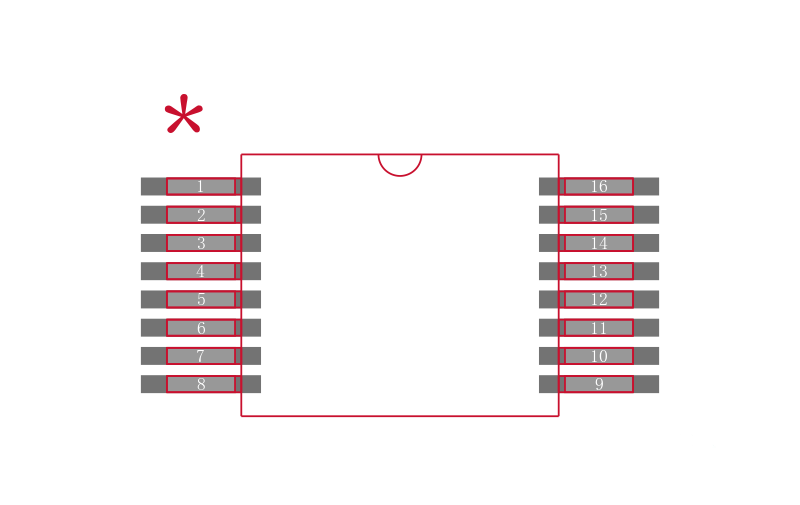

封装 TFSOP-16
封装 TFSOP-16
工作温度 -40℃ ~ 85℃ TA
产品生命周期 Active
包装方式 Tape & Reel TR
RoHS标准 RoHS Compliant
含铅标准 Lead Free
REACH SVHC版本 2015/06/15
型号/品牌 | 代替类型 | 替代型号对比 |
---|---|---|
SN74HC4852DGVR TI 德州仪器 | 当前型号 | 当前型号 |
SN74HC4852PWR 德州仪器 | 完全替代 | SN74HC4852DGVR和SN74HC4852PWR的区别 |
SN74HC4852PW 德州仪器 | 完全替代 | SN74HC4852DGVR和SN74HC4852PW的区别 |
SN74HC4852DGVRE4 德州仪器 | 类似代替 | SN74HC4852DGVR和SN74HC4852DGVRE4的区别 |
