SMF24A-GS08

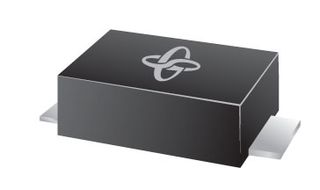

VISHAY  SMF24A-GS08  静电保护装置, TVS, 38.9 V, DO-219AB, 2 引脚

Features

• For surface mounted applications

• Low-profile package

• Optimized for LAN protection applications

• Ideal for ESD protection of data lines in accordance with IEC 61000-4-2 IEC 801-2

• Ideal for EFT protection of data lines in accordance with IEC 61000-4-4 IEC 801-4

• IEC 61000-4-2 ESD 15 kV air 8 kV contact

• Low incremental surge resistance, excellent clamping capability

• 200 W peak pulse power capability with a 10/1000 µs waveform, repetition rate duty cycle: 0.01 %

• Very fast response time

• High temperature soldering guaranteed: 260 °C/10 s at terminals

• AEC Q101 qualified

• Lead Pb-free component

• Component in accordance to RoHS 2002/95/EC and WEEE 2002/96/EC

• Halogen-free according to IEC 61249-2-21
