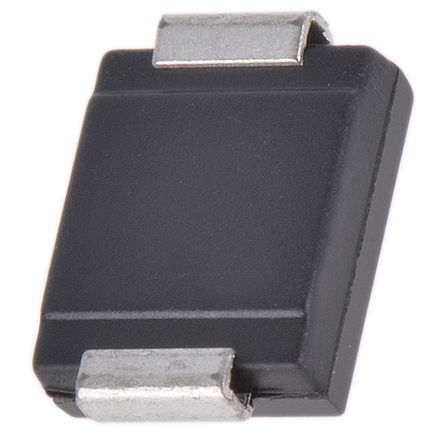

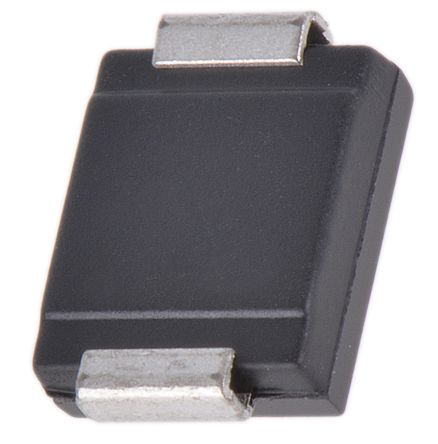

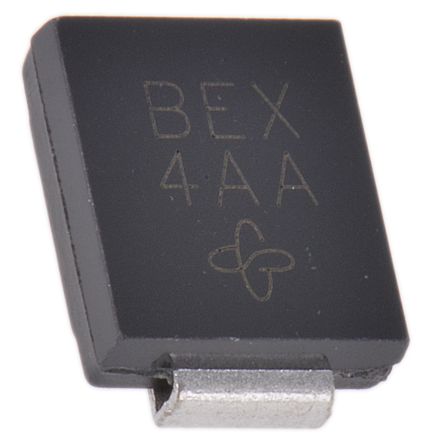

VISHAY SMCJ22CA-E3/57T TVS二极管, TVS, TRANSZORB SMCJ系列, 双向, 22 V, 35.5 V, SMD, 2 引脚
The TRANSZORB SMCJ series surface-mount Transient Voltage Suppressor Diode offers excellent clamping capability. It is available in unidirectional and bidirectional and ideal for automated placement. It is used in sensitive electronics protection against voltage transients induced by inductive load switching and lighting on ICs, MOSFET and signal lines of sensor units.
- .
- Glass passivated chip junction
- .
- Very fast response time
- .
- Low incremental surge resistance
- .
- -55 to 150°C Operating junction temperature range
击穿电压 26.9 V
电路数 1
针脚数 2
耗散功率 6.50 W
钳位电压 35.5 V
测试电流 1 mA
最大反向击穿电压 26.9 V
脉冲峰值功率 1.5 kW
最小反向击穿电压 24.4 V
工作温度Max 150 ℃
工作温度Min -55 ℃
工作结温 -55℃ ~ 150℃
安装方式 Surface Mount
引脚数 2
封装 SMD
长度 7.11 mm
宽度 6.22 mm
高度 2.62 mm
封装 SMD
工作温度 -55℃ ~ 150℃
产品生命周期 Discontinued at Digi-Key
包装方式 Cut Tape CT
制造应用 Lighting, Industrial, 通用, Automotive, Sensing & Instrumentation, Consumer Electronics, Computers & Computer Peripherals, Communications & Networking
RoHS标准 RoHS Compliant
含铅标准 Lead Free
ECCN代码 EAR99
| 型号/品牌 | 代替类型 | 替代型号对比 |
|---|---|---|
SMCJ22CA-E3/57T Vishay Semiconductor 威世 | 当前型号 | 当前型号 |
SMCJ22CA 威世 | 类似代替 | SMCJ22CA-E3/57T和SMCJ22CA的区别 |
SMCJ24CA 力特 | 功能相似 | SMCJ22CA-E3/57T和SMCJ24CA的区别 |
SMCJ20CA 力特 | 功能相似 | SMCJ22CA-E3/57T和SMCJ20CA的区别 |
