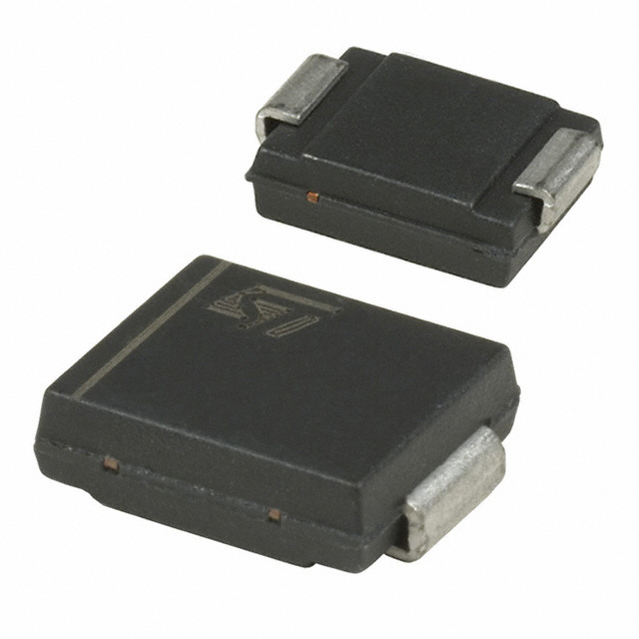

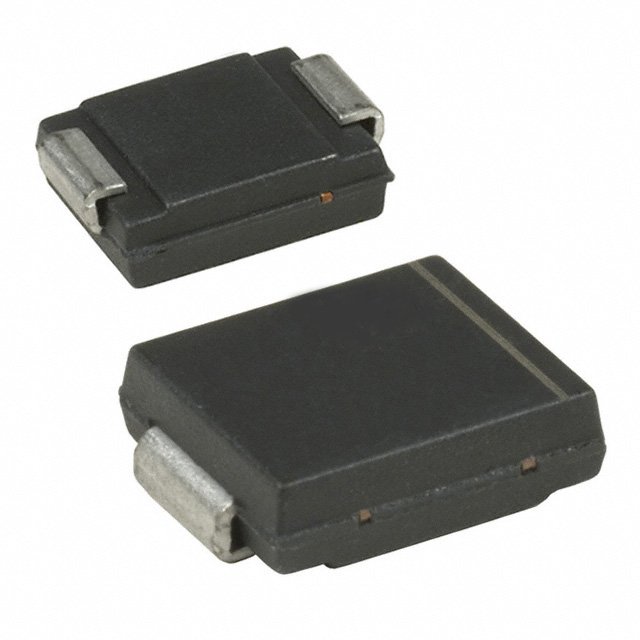

SMCJ 系列 1500 W 28.1 V 双向 瞬态电压抑制器 - DO-214AB
Protect users and systems from overvoltage conditions by equipping your electronic equipment with STMicroelectronics" TVS diode. Its maximum leakage current is 0.2 μA. This device"s maximum clamping voltage is 50 V and minimum breakdown voltage is 26.7 V. Its test current is 1 mA. Its peak pulse power dissipation is 1500 W. This TVS diode has a minimum operating temperature of -55 °C and a maximum of 150 °C. This component will be shipped in tape and reel packaging to allow for effective mounting and safe delivery.
额定电压DC 24.0 V
额定功率 1.50 kW
电路数 1
针脚数 2
耗散功率 1500 W
钳位电压 50 V
最大反向电压（Vrrm） 24V
测试电流 1 mA
脉冲峰值功率 1500 W
最小反向击穿电压 26.7 V
击穿电压 26.7 V
工作温度Max 150 ℃
工作温度Min -55 ℃
工作结温 -55℃ ~ 150℃
安装方式 Surface Mount
引脚数 2
封装 DO-214AB
长度 7.15 mm
宽度 6.25 mm
高度 2.45 mm
封装 DO-214AB
工作温度 -55℃ ~ 150℃ TJ
产品生命周期 Active
包装方式 Tape & Reel TR
制造应用 通用
RoHS标准
含铅标准 Lead Free
REACH SVHC版本 2015/12/17
ECCN代码 EAR99
| 型号/品牌 | 代替类型 | 替代型号对比 |
|---|---|---|
SMCJ24CA-TR ST Microelectronics 意法半导体 | 当前型号 | 当前型号 |
SMCJ24CA 力特 | 功能相似 | SMCJ24CA-TR和SMCJ24CA的区别 |
SMCJ24CA-E3/57T 威世 | 功能相似 | SMCJ24CA-TR和SMCJ24CA-E3/57T的区别 |
