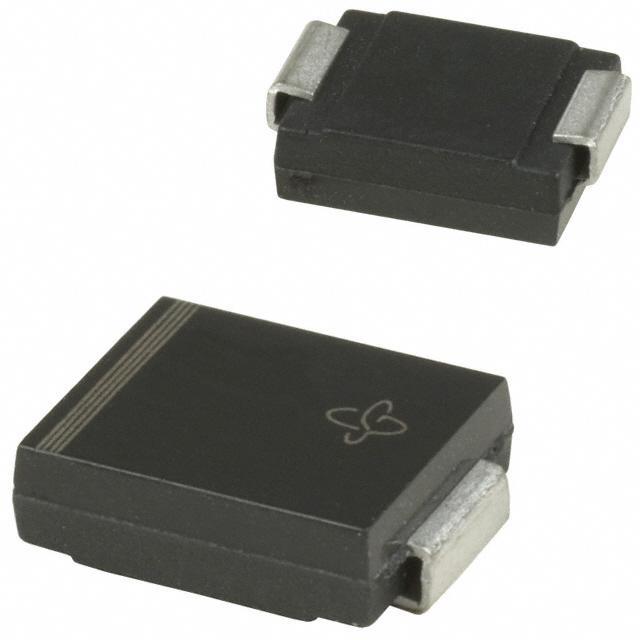

VISHAY SMCJ28A-E3/57T TVS二极管, TVS, TRANSZORB SMCJ系列, 单向, 28 V, 45.4 V, DO-214AB, 2 引脚
The TRANSZORB SMCJ series surface-mount Transient Voltage Suppressor Diode offers excellent clamping capability. It is available in unidirectional and bidirectional and ideal for automated placement. It is used in sensitive electronics protection against voltage transients induced by inductive load switching and lighting on ICs, MOSFET and signal lines of sensor units.
- .
- Glass passivated chip junction
- .
- Very fast response time
- .
- Low incremental surge resistance
- .
- -55 to 150°C Operating junction temperature range
击穿电压 34.4 V
电路数 1
针脚数 2
耗散功率 6.50 W
钳位电压 45.4 V
最大反向击穿电压 34.4 V
脉冲峰值功率 1.5 kW
最小反向击穿电压 31.1 V
安装方式 Surface Mount
引脚数 2
封装 DO-214AB
长度 7.11 mm
宽度 6.22 mm
高度 2.62 mm
封装 DO-214AB
工作温度 -55℃ ~ 150℃
产品生命周期 Active
包装方式 Cut Tape CT
制造应用 Computers & Computer Peripherals, Sensing & Instrumentation, Automotive, Lighting, Consumer Electronics, Communications & Networking, 通用, Industrial
RoHS标准 RoHS Compliant
含铅标准 Lead Free
ECCN代码 EAR99
| 型号/品牌 | 代替类型 | 替代型号对比 |
|---|---|---|
SMCJ28A-E3/57T Vishay Semiconductor 威世 | 当前型号 | 当前型号 |
SMCJ28AHE3/57T 威世 | 类似代替 | SMCJ28A-E3/57T和SMCJ28AHE3/57T的区别 |
SMCJ28A 美台 | 类似代替 | SMCJ28A-E3/57T和SMCJ28A的区别 |
SMCJ28A-M3/9AT 威世 | 类似代替 | SMCJ28A-E3/57T和SMCJ28A-M3/9AT的区别 |
