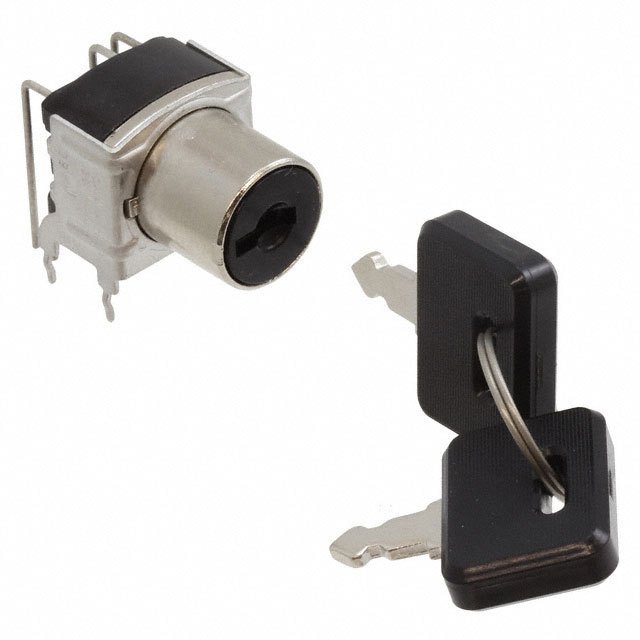

NKK SWITCHES SK22BG30 钥匙开关, DPDT, 0.1A, 28VAC
Single pole with 12 mm dia. bushing, silver contacts, UL Recognition, CSA Certification, short behind panel dimension and epoxy sealed solder lug terminals.Face and bezel have brushed chrome finish. 2 Keys of chromate-over-zinc alloy provided with each switch.
贸泽:
键锁开关 Series SK Miniature PCB Mounts
e络盟:
钥匙开关, DPDT, 0.1A, 28VAC
艾睿:
Non-authorized users will not be able to use your system without the key with this process sealed SK22BG30 Keylock switch from NKK Switches. It has a DPDT configuration. This device has a maximum current rating of 0.1 A @ 28VAC 28VDC. This switch key has an operating temperature range of -25 °C to 70 °C. The SK22BG30 switch key has a PC pin termination style. This product is 15.74 mm long, 16.3 mm tall and 25.45 mm deep. The maximum AC voltage rating is 28 VAC and the maximum DC voltage rating is 28 VDC.
Allied Electronics:
SW KEYLOCK DPDT RIGHT ANGLE 28V
Chip1Stop:
Switch Key Lock ON None ON DPDT 90° Flat Key 0.1A 28VAC 28VDC 0.4VA PC Pins 30000Cycles Bracket Mount/Through Hole
Verical:
Switch Key Lock ON None ON DPDT 90° Flat Key 0.1A 28VAC 28VDC 0.4VA PC Pins 30000Cycles Bracket Mount/Through Hole
Newark:
# NKK SWITCHES SK22BG30 Keylock Switch, DPDT, On-None-On, Solder, 100 mA, 28 V
Powell:
MINIATURE KEYLOCK/PC
Win Source:
SWITCH KEYLK 2POS DPDT 0.4VA 28V / Keylock Switch 2 Position DPDT 0.4VA AC/DC 28 VAC 28 VDC Through Hole, Right Angle
