SMBJ60A

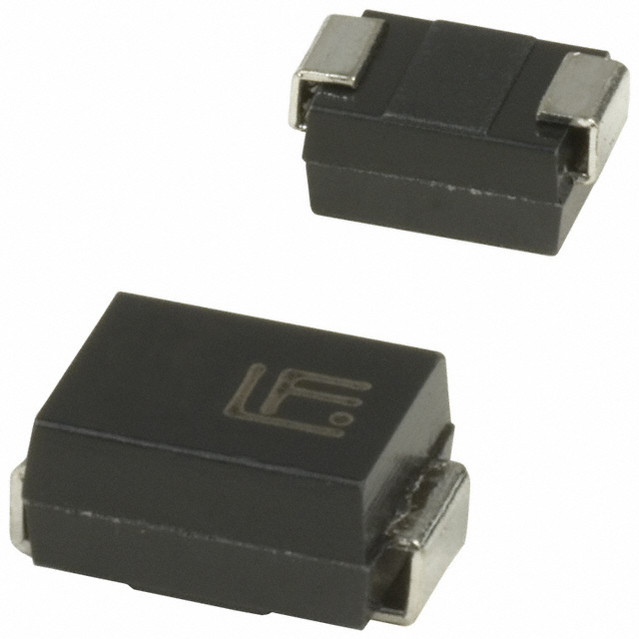

LITTELFUSE  SMBJ60A  二极管, TVS, 600W, 60V, DO-214AA

The SMBJ series surface-mount Transient Voltage Suppression Diode designed specifically to protect sensitive electronic equipment from voltage transients induced by lightning and other transient voltage events. It is ideal for the protection of I/O interfaces, VCC bus and other vulnerable circuits. It is used for surface mounted applications in order to optimize board space.

.

600W Peak pulse power capability at 10x1000µs waveform

.

Built-in strain relief

.

Glass passivated chip junction

.

Low incremental surge resistance

.

Excellent clamping capability

.

0.01% Repetition rate duty cycle

.

<1ps from 0V to VBR Minimum fast response time

.

<1µA above 12V Current IR

.

Available in unidirectional and bidirectional

.

ESD protection of data lines in accordance with IEC 61000-4-2 IEC801-2

.

EFT protection of data lines in accordance with IEC 61000-4-4 IEC801-4

.

-65 to 150°C Operating temperature range
