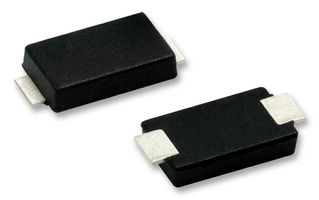

VISHAY SMAJ36A-E3/5A TVS二极管, TVS, TRANSZORB SMAJ系列, 单向, 36 V, 58.1 V, SMD, 2 引脚
The TRANSZORB SMAJ series surface-mount Transient Voltage Suppressor Diode offers 400W peak pulse power capability with a 10/1000µs waveform, 0.01% 300W above 78V repetitive rate duty cycle. It is used in sensitive electronics protection against voltage transients induced by inductive load switching and lighting on ICs, MOSFET and signal lines of sensor units.
- .
- Ideal for automated placement
- .
- Glass passivated chip junction
- .
- Available in unidirectional and bidirectional
- .
- Excellent clamping capability
- .
- Very fast response time
- .
- Low incremental surge resistance
- .
- -55 to 150°C Operating junction temperature range
工作电压 36 V
击穿电压 40 V
电路数 1
针脚数 2
耗散功率 400 W
钳位电压 58.1 V
测试电流 1 mA
最大反向击穿电压 44.2 V
脉冲峰值功率 400 W
最小反向击穿电压 40 V
工作温度Max 150 ℃
工作温度Min -55 ℃
安装方式 Surface Mount
引脚数 2
封装 DO-214AC-2
封装 DO-214AC-2
工作温度 -55℃ ~ 150℃
产品生命周期 Active
包装方式 Cut Tape CT
制造应用 Computers & Computer Peripherals, Consumer Electronics, Industrial, 通用, Automotive, Lighting, Communications & Networking, Sensing & Instrumentation
RoHS标准 RoHS Compliant
含铅标准 Lead Free
| 型号/品牌 | 代替类型 | 替代型号对比 |
|---|---|---|
SMAJ36A-E3/5A Vishay Semiconductor 威世 | 当前型号 | 当前型号 |
SMAJ36A-E3/61 威世 | 完全替代 | SMAJ36A-E3/5A和SMAJ36A-E3/61的区别 |
SMAJ36AHE3/61 威世 | 完全替代 | SMAJ36A-E3/5A和SMAJ36AHE3/61的区别 |
SMAJ36A 威世 | 完全替代 | SMAJ36A-E3/5A和SMAJ36A的区别 |
