按钮开关 Series SB40 3 AMP, Momentary

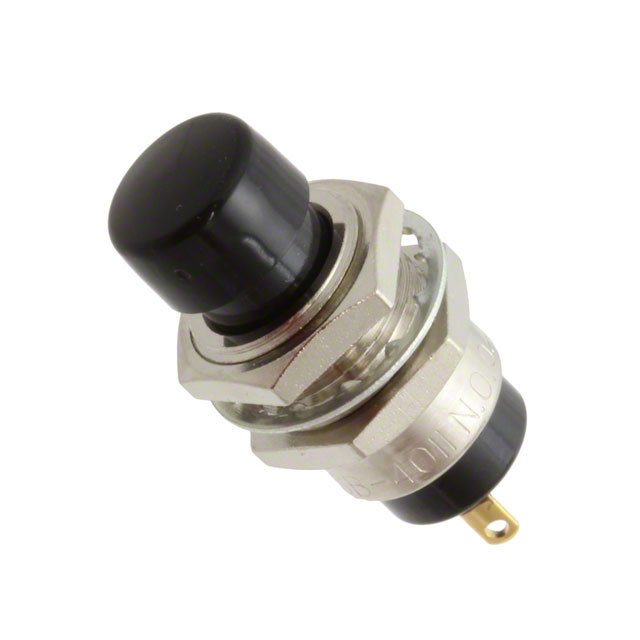

Series SB momentary pushbuttons utilize a nickel-plated brass bushing, a phenolic resin case and plunger combined to offer a lightweight switch. Self cleaning contacts and epoxy sealed terminals insure long switch life. UL recognized and CSA certified only when ordered with UL or CSA mark on switch. Contact your Allied sales representative for details.
得捷:
SWITCH PUSH SPST-NO 0.4VA 28V
立创商城:
SB4011NOHG-2A
贸泽:
按钮开关 Series SB40 3 AMP, Momentary
艾睿:
Manually control your circuit components with this SB4011NOHG-2A push button switch from NKK Switches. This device has a maximum current rating of 0.1 A @ 28VAC 28VDC. It has a SPST configuration. This push switch has an operating temperature range of -10 °C to 70 °C. The SB4011NOHG-2A push switch has a solder lug termination style. This product is 12 mm long, 28.3 mm tall and 12 mm deep. The maximum AC voltage rating is 28 VAC and the maximum DC voltage rating is 28 VDC.
Allied Electronics:
MINIATURE PUSHBUTTON/PANEL MOUNT
Chip1Stop:
Switch Push Button OFF ON SPST Round Plunger 0.1A 28VAC 28VDC 0.4VA Momentary Contact Solder Lug Panel Mount
Verical:
Switch Push Button OFF ON SPST Round Plunger 0.1A 28VAC 28VDC 0.4VA Momentary Contact Panel Mount Solder Lug
Powell:
MINIATURE PUSHBUTTON/PANEL MOUNT
