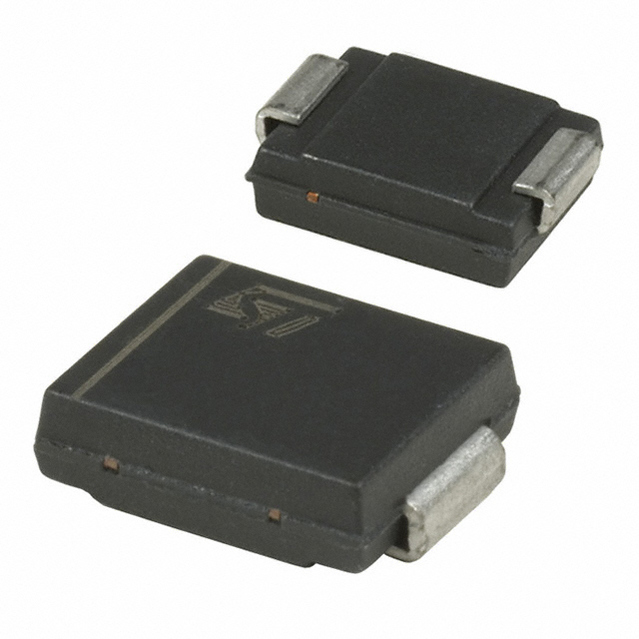

STMICROELECTRONICS SM15T18CA TVS二极管, TVS, Transil SM15T系列, 双向, 15.3 V, 32.5 V, DO-214AB, 2 引脚
Transil™ TVS 轴向双向 1500W,STMicroelectronics
得捷:
TVS DIODE 15.3VWM 32.5VC SMC
欧时:
### Transil™ TVS 轴向双向 1500W,STMicroelectronics![http://china.rs-online.com/largeimages/L229582-01.gif]http://china.rs-online.com/largeimages/L229582-01.gif![http://china.rs-online.com/largeimages/LD229582-01.gif]http://china.rs-online.com/largeimages/LD229582-01.gif ### 瞬态电压抑制器,STMicroelectronics
立创商城:
双向 Vrwm:15.3V
贸泽:
ESD Suppressors / TVS Diodes 1500W 18V Bidirect
艾睿:
Surges can be a costly problem, avoid the pain and suffering by implementing this SM15T18CA TVS diode from STMicroelectronics. Its maximum leakage current is 0.2 μA. This device&s;s maximum clamping voltage is 32.5 V and minimum breakdown voltage is 17.1 V. Its peak pulse power dissipation is 1500 W. Its test current is 1 mA. This TVS diode has an operating temperature range of -55 °C to 150 °C. This product will be shipped in tape and reel packaging for quick mounting and safe delivery.
安富利:
Diode TVS Single Bi-Dir 15.3V 1.5KW 2-Pin SMC T/R
富昌:
SM15T 系列 1500 W 18.6 V 双向 瞬态电压抑制器-DO-214AB
Chip1Stop:
Diode TVS Single Bi-Dir 15.3V 1.5KW Automotive 2-Pin SMC T/R
Verical:
TVS Diode Single Bi-Dir 15.3V 1.5KW 2-Pin SMC T/R
Newark:
# STMICROELECTRONICS SM15T18CA TVS Diode, Transil SM15T Series, Bidirectional, 15.3 V, 32.5 V, DO-214AB, 2 Pins
儒卓力:
**TRANSIL BI 1,5KW 18V SMC **
Win Source:
TVS DIODE 15.3VWM 32.5VC SMC
额定电压DC 18.0 V
工作电压 18.0 V
电容 4.3 nF
额定功率 1.50 kW
击穿电压 17.1 V
电路数 1
针脚数 2
耗散功率 1.5 kW
钳位电压 32.5 V
最大反向电压(Vrrm) 15.3V
测试电流 1 mA
最大反向击穿电压 18.9 V
脉冲峰值功率 1500 W
最小反向击穿电压 17.1 V
击穿电压 17.1 V
工作温度Max 150 ℃
工作温度Min -55 ℃
工作结温 -55℃ ~ 150℃
安装方式 Surface Mount
引脚数 2
封装 SMC
长度 7.15 mm
宽度 6.25 mm
高度 2.45 mm
封装 SMC
工作温度 -55℃ ~ 150℃ TJ
产品生命周期 Active
包装方式 Tape & Reel TR
制造应用 Power Management, Aerospace, Defence, Military, 工业, Industrial, 国防, 通用, 军用与航空, 电源管理
RoHS标准 RoHS Compliant
含铅标准 Lead Free
REACH SVHC标准 No SVHC
军工级 Yes
REACH SVHC版本 2015/12/17
ECCN代码 EAR99
型号/品牌 | 代替类型 | 替代型号对比 |
---|---|---|
SM15T18CA ST Microelectronics 意法半导体 | 当前型号 | 当前型号 |
SM15T15CA 意法半导体 | 类似代替 | SM15T18CA和SM15T15CA的区别 |
SMCJ15CA 伯恩斯 | 功能相似 | SM15T18CA和SMCJ15CA的区别 |
SMCJ18CA 飞兆/仙童 | 功能相似 | SM15T18CA和SMCJ18CA的区别 |
