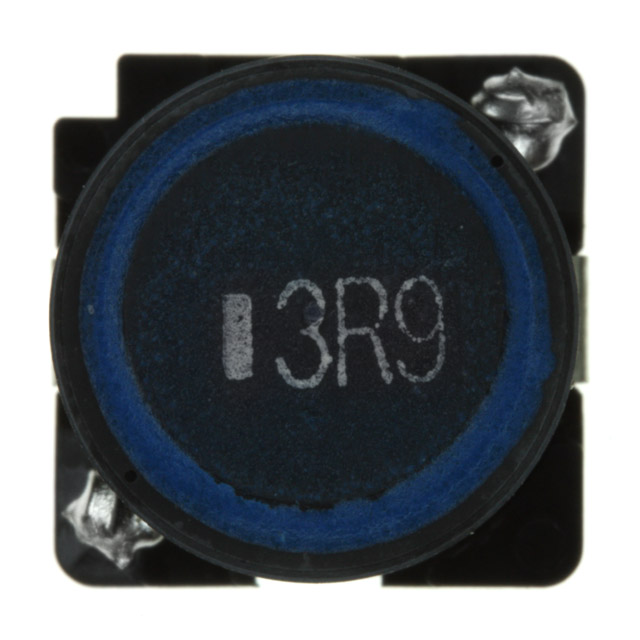

TDK SLF12575T-3R9N6R7-H 表面贴装功率电感器, SLF系列, 3.9 µH, ± 30%, 绕线, 0.0104 ohm, 6.7 A
3.9µH Shielded Wirewound Inductor 6.7A 12.48mOhm Max Nonstandard
立创商城:
3.9uH ±30% 14A 10.4mΩ
得捷:
FIXED IND 3.9UH 6.7A 12.48 MOHM
e络盟:
TDK SLF12575T-3R9N6R7-H 表面贴装功率电感器, SLF系列, 3.9 µH, ± 30%, 绕线, 0.0104 ohm, 6.7 A
艾睿:
This power SLF12575T-3R9N6R7-H surface mount inductor from TDK is placed on the surface of a PCB during surface mount manufacturing processing. This SMD inductor has an operating temperature range of -40 °C to 125 °C. In order to guarantee safe delivery and allow for quick mounting of this component after delivery, it will be enclosed in tape and reel packaging during shipment. This SMD inductor has a maximum DC current of 6.7Typ A with a maximum resistance of 12.48m Ohm. Its test frequency is 1K Hz. This device utilizes wirewound technology. It has an inductance of 3.9u H. This product is 12.8 mm long, 7.85 mm tall and 12.8 mm deep.
安富利:
Ind Power Shielded Wirewound 3.9uH 30% 1KHz 6.7A T/R
Verical:
Inductor Power Shielded Wirewound 3.9uH 30% 1KHz Ferrite 6.7A 0.01248Ohm DCR Automotive T/R
Electro Sonic:
Inductor Power Shielded Wirewound 3.9uH 30% 1KHz Ferrite 6.7A 12.48mOhm DCR Automotive T/R
电感 3.9 µH
产品系列 SLF
电感公差 ±30 %
测试频率 1 kHz
电阻DC) ≤10.40 mΩ
工作温度Max 125 ℃
工作温度Min -40 ℃
电阻DC Max 0.0104 Ω
安装方式 Surface Mount
封装 12.5mm x 12.5mm x 7.5mm
高度 7.85 mm
封装 12.5mm x 12.5mm x 7.5mm
工作温度 -40℃ ~ 125℃
产品生命周期 Active
包装方式 Cut Tape CT
最小包装 500
RoHS标准 RoHS Compliant
含铅标准 Lead Free
REACH SVHC标准 No SVHC
REACH SVHC版本 2015/06/15
