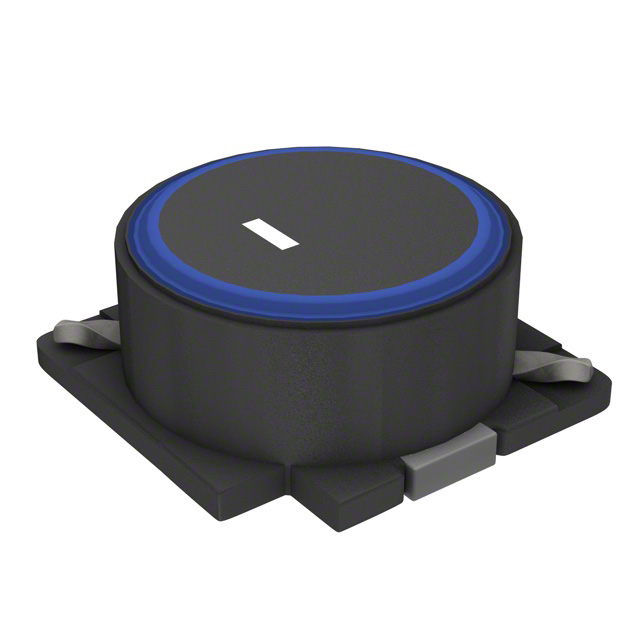

TDK SLF12565T-100M4R8-H 表面贴装功率电感器, SLF系列, 10 µH, ± 20%, 绕线, 0.0202 ohm, 4.8 A
其他
得捷:
FIXED IND 10UH 4.8A 24.24MOHM SM
贸泽:
Fixed Inductors 10uH 4.8A AEC-Q200
e络盟:
功率电感SMD, 10 µH, 4.8 A, 绕线, 5 A, SLF系列, 12.5mm x 12.5mm x 6.5mm
艾睿:
This power SLF12565T-100M4R8-H surface mount inductor from TDK is ideal for saving valuable space on a PCB. This SMD inductor has a minimum operating temperature of -40 °C and a maximum of 125 °C. In order to guarantee safe delivery and allow for quick mounting of this component after delivery, it will be enclosed in tape and reel packaging during shipment. This product is 12.8 mm long, 6.85 mm tall and 12.8 mm deep. This device is made with wirewound technology. This SMD inductor has a maximum DC current of 4.8Typ A with a maximum resistance of 24.24m Ohm. Its test frequency is 1K Hz. It has a tolerance of 20%. It has an inductance of 10u H.
Verical:
Inductor Power Shielded Wirewound 10uH 20% 1KHz Ferrite 4.8A 0.02424Ohm DCR Automotive T/R
Newark:
Surface Mount Power Inductor, SLF Series, 10 H, 20%, Wirewound, 0.0202 ohm, 4.8 A
Electro Sonic:
Inductor Power Shielded Wirewound 10uH 20% 1KHz Ferrite 4.8A 24.24mOhm DCR Automotive T/R
额定电流 4.8 A
容差 ±20 %
电感 10 µH
产品系列 SLF
电感公差 ±20 %
测试频率 1 kHz
电阻DC) ≤24.24 mΩ
工作温度Max 105 ℃
工作温度Min 40 ℃
电阻DC Max 0.0202 Ω
安装方式 Surface Mount
封装 12.5mm x 12.5mm x 6.5mm
长度 12.5 mm
宽度 12.5 mm
高度 6.5 mm
封装 12.5mm x 12.5mm x 6.5mm
工作温度 -40℃ ~ 125℃
产品生命周期 Not Recommended for New Designs
包装方式 Cut Tape CT
最小包装 500
RoHS标准 RoHS Compliant
含铅标准 Lead Free
REACH SVHC标准 No SVHC
REACH SVHC版本 2018/01/15
