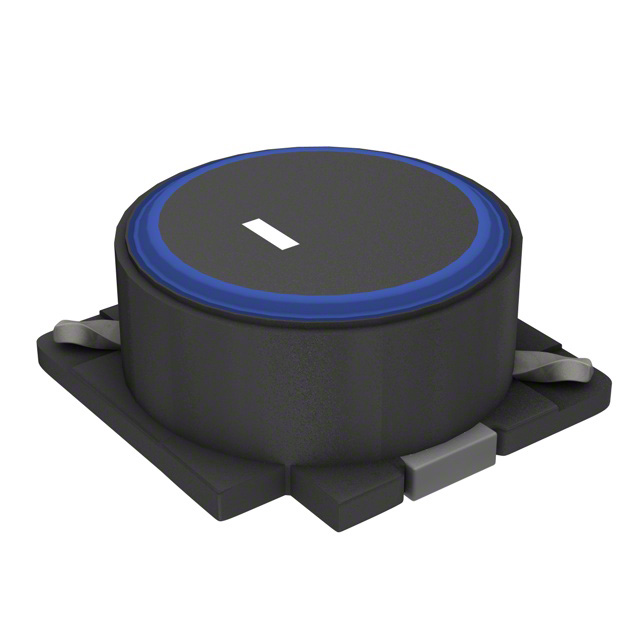

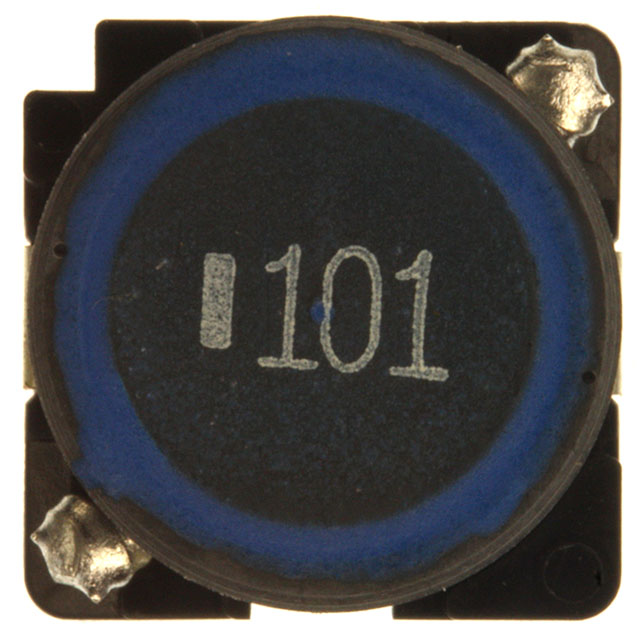

TDK SLF12565T-101M1R6-H 表面贴装功率电感器, SLF系列, 100 µH, ± 20%, 绕线, 0.123 ohm, 1.9 A
固定器
得捷:
FIXED IND 100UH 1.6A 147.6 MOHM
立创商城:
100uH ±20% 1.6A 123mΩ
e络盟:
TDK SLF12565T-101M1R6-H 表面贴装功率电感器, SLF系列, 100 µH, ± 20%, 绕线, 0.123 ohm, 1.9 A
艾睿:
Make any circuit look clean and compact using this power SLF12565T-101M1R6-H surface mount inductor from TDK. This SMD inductor has a minimum operating temperature of -40 °C and a maximum of 125 °C. This component will be shipped in tape and reel packaging to allow for effective mounting and safe delivery. This SMD inductor has a maximum DC current of 1.9Typ A with a maximum resistance of 147.6m Ohm. It has a tolerance of 20%. Its test frequency is 1K Hz. It has an inductance of 100u H. This device is made with wirewound technology. This product is 12.8 mm long, 6.85 mm tall and 12.8 mm deep.
Chip1Stop:
Ind Power Shielded Wirewound 100uH 20% 1KHz 1.9A T/R
Electro Sonic:
Inductor Power Shielded Wirewound 100uH 20% 1KHz Ferrite 1.9A 147.6mOhm DCR Automotive T/R
额定电流 1.6 A
容差 ±20 %
电感 100 µH
产品系列 SLF
电感公差 ±20 %
测试频率 1 kHz
电阻DC) ≤147.6 mΩ
工作温度Max 125 ℃
工作温度Min -40 ℃
电阻DC Max 0.123 Ω
安装方式 Surface Mount
封装 1212
长度 12.8 mm
宽度 12.8 mm
高度 6.85 mm
封装 1212
工作温度 -40℃ ~ 125℃
产品生命周期 Active
包装方式 Cut Tape CT
最小包装 500
RoHS标准 RoHS Compliant
含铅标准 Lead Free
REACH SVHC标准 No SVHC
REACH SVHC版本 2015/06/15
