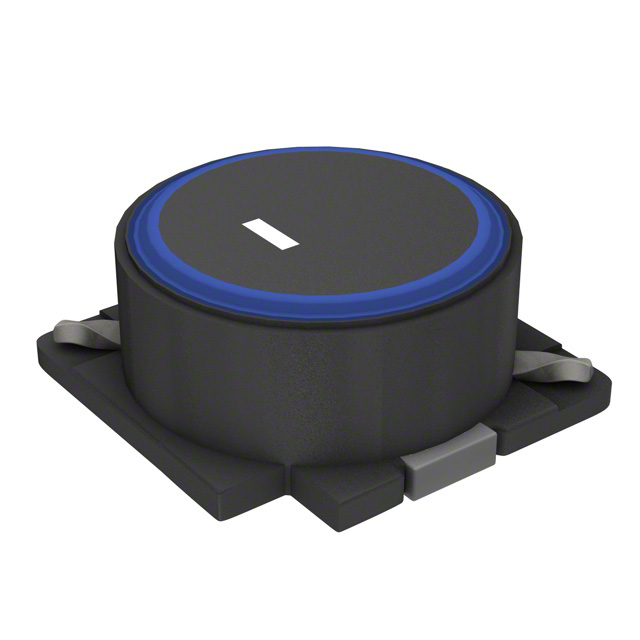

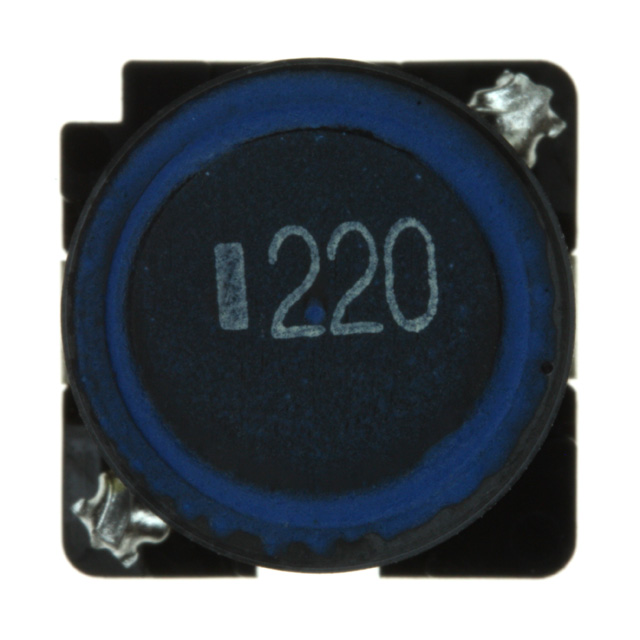

SLF12565T-220M3R5-H概述

TDK  SLF12565T-220M3R5-H  表面贴装功率电感器, SLF系列, 22 µH, ± 20%, 绕线, 0.0316 ohm, 3.8 A

固定器


立创商城:
22uH ±20% 6A 31.6mΩ


得捷:
FIXED IND 22UH 3.5A 37.92MOHM SM


艾睿:
This power SLF12565T-220M3R5-H surface mount inductor from TDK is available in all standard chip sizes in multilayer thick film and thin film deposition and wire wound styles. This SMD inductor has an operating temperature range of -40 °C to 125 °C. Tape and reel packaging will encase this product during shipment, in order to ensure safe delivery and enable quick mounting of components. It has an inductance of 22u H. This SMD inductor has a maximum DC current of 3.8Typ A with a maximum resistance of 37.92m Ohm. Its test frequency is 1K Hz. It has a tolerance of 20%. This device utilizes wirewound technology. This product is 12.8 mm long, 6.85 mm tall and 12.8 mm deep.


Chip1Stop:
Ind Power Shielded Wirewound 22uH 20% 1KHz 3.8A T/R


Verical:
Inductor Power Shielded Wirewound 22uH 20% 1KHz Ferrite 3.8A 0.03792Ohm DCR Automotive T/R


Newark:
# TDK  SLF12565T-220M3R5-H  Surface Mount Power Inductor, SLF Series, 22 H, 20%, Wirewound, 0.0316 ohm, 3.8 A


Electro Sonic:
Inductor Power Shielded Wirewound 22uH 20% 1KHz Ferrite 3.8A 37.92mOhm DCR Automotive T/R


SLF12565T-220M3R5-H中文资料参数规格
技术参数

额定电流 3.5 A

容差 ±20 %

电感 22 µH

产品系列 SLF

电感公差 ±20 %

测试频率 1 kHz

电阻DC) ≤37.92 mΩ

工作温度Max 125 ℃

工作温度Min -40 ℃

电阻DC Max 0.0316 Ω

封装参数

安装方式 Surface Mount

封装 12565 metric

外形尺寸

长度 12.5 mm

宽度 12.5 mm

高度 6.5 mm

封装 12565 metric

物理参数

工作温度 -40℃ ~ 125℃

其他

产品生命周期 Active

包装方式 Cut Tape CT

最小包装 500

符合标准

RoHS标准 RoHS Compliant

含铅标准 Lead Free

REACH SVHC标准 No SVHC

REACH SVHC版本 2015/06/15

数据手册

SLF12565T-220M3R5-H引脚图与封装图

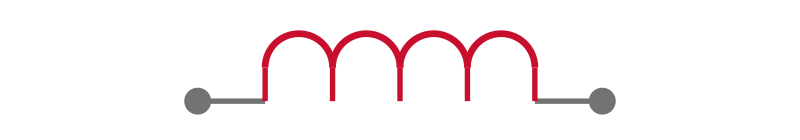

SLF12565T-220M3R5-H引脚图
SLF12565T-220M3R5-H封装图

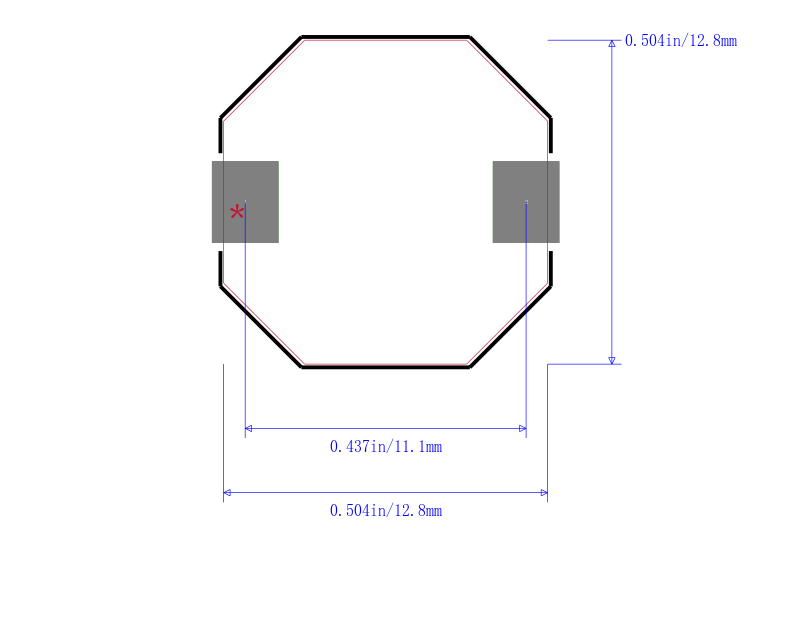

SLF12565T-220M3R5-H封装焊盘图
在线购买SLF12565T-220M3R5-H
型号: SLF12565T-220M3R5-H
制造商: TDK 东电化
描述:TDK  SLF12565T-220M3R5-H  表面贴装功率电感器, SLF系列, 22 µH, ± 20%, 绕线, 0.0316 ohm, 3.8 A
