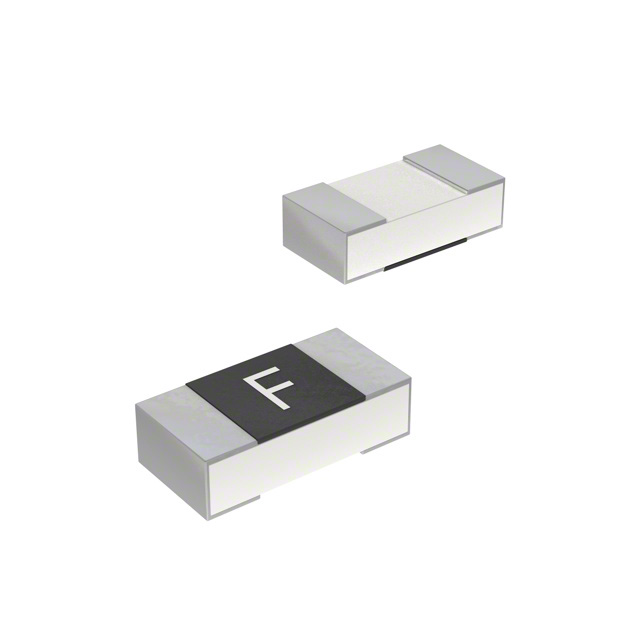

BOURNS SF-0603S400-2 单路保险丝, 32V, 4A, 0603
Fuse Chip Slow Blow Acting 4A 32V SMD Solder Pad 0603 T/R UL
得捷:
FUSE BOARD MOUNT 4A 32VDC 0603
e络盟:
表面安装保险丝, 4 A, SF-0603S系列, 32 VDC, 缓慢熔断, 0603
艾睿:
A great alternative to a circuit breaker, this a chip SF-0603S400-2 fuse from Bourns will protect your electronics. This device has a current rating of 4. It has 2 terminals. The SF-0603S400-2 fuse has a solder pad termination style. Mount your fuse on a printed circuit board using surface mount technology to produce the most effective results. This product will be shipped in tape and reel packaging for quick mounting and safe delivery. This product is 1.6 mm long, 0.45 mm tall and 0.8 mm deep. The maximum DC voltage rating is 32 VDC.
安富利:
Fuse Miniature 4A 32V Slow Blow 2-Pin T/R
Verical:
Fuse Chip Slow Blow Acting 4A 32V SMD Solder Pad 0603 Ceramic T/R UL
Newark:
# BOURNS SF-0603S400-2 FUSE, SMD, 4A, 0603, SLOW BLOW
Online Components:
Fuse Chip Slow Blow Acting 4A 32V SMD Solder Pad 0603 T/R UL
Electro Sonic:
Fuse Chip Slow Blow Acting 4A 32V SMD Solder Pad 0603 T/R UL
额定电压DC 32 V
额定电压AC 35 V
额定电流 4 A
电阻 0.012 Ω
额定电压 32 V
额定电压DC Max 32 V
安装方式 Surface Mount
引脚数 2
封装公制 1608
封装 0603
长度 1.6 mm
宽度 0.8 mm
高度 0.45 mm
封装公制 1608
封装 0603
工作温度 -40℃ ~ 105℃
产品生命周期 Active
包装方式 Tape & Reel TR
RoHS标准 RoHS Compliant
含铅标准 Lead Free
REACH SVHC标准 No SVHC
REACH SVHC版本 2016/06/20
ECCN代码 EAR99
