SDA08H0SB

SDA 系列 薄型 单刀单掷 8 位置 表面贴装 密封 DIP 开关

DIP SPST 8 位置 表面贴装型 滑动式（标准） 触动器 25mA 24VDC

得捷:
SWITCH SLIDE DIP SPST 25MA 24V

立创商城:
SDA08H0SB

贸泽:
DIP Switches / SIP Switches FLUSH ACT 8 POS

艾睿:

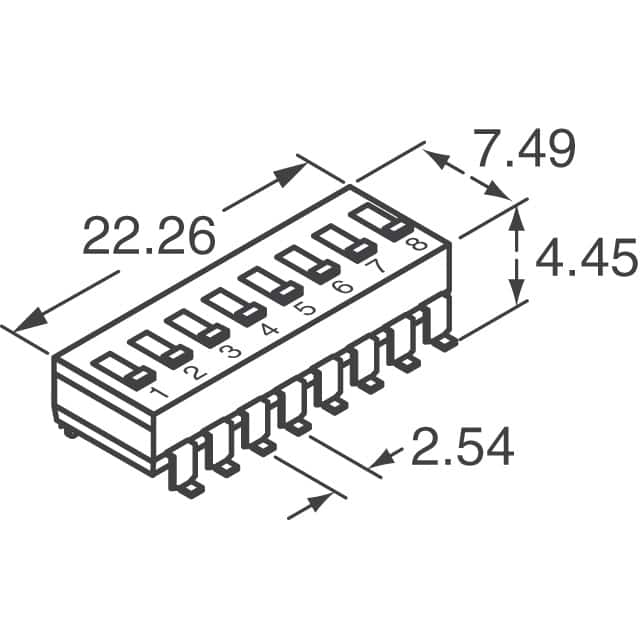

The SDA08H0SB dual in-line package switch, developed by C&a;K Components, can give you electronic flow control within your printed circuit board. This device has a maximum current rating of 0.1 A @ 5VDC. It has a SPST configuration. This DIP switch has an operating temperature range of -40 °C to 85 °C. The SDA08H0SB DIP switch has a gull wing termination style. This product&s;s terminal pitch is 2.54 mm. This product is 22.26 mm long, 4.45 mm tall and 9.3 mm deep. The maximum DC voltage rating is 24 VDC.

安富利:
Switch DIP OFF ON SPST 8 Recessed Slide 0.1A 24VDC Gull Wing 1000Cycle 2.54mm SMD Tube

Chip1Stop:
Switch DIP OFF ON SPST 8 Flush Slide 0.1A 24VDC Gull Wing 1000Cycles 2.54mm SMD Tube

Verical:
Switch DIP OFF ON SPST 8 Flush Slide 0.1A 24VDC Gull Wing 1000Cycles 2.54mm SMD Tube

Newark:
# C & K COMPONENTS  SDA08H0SB  DIP / Rotary DIP

MASTER:
Low Profile DIP

Online Components:
Low Profile DIP

Electro Sonic:
Low Profile DIP

Win Source:
SWITCH SLIDE DIP SPST 25MA 24V / Dip Switch SPST 8 Position Surface Mount Slide Standard Actuator 25mA 24VDC
