SDR2207-101KL

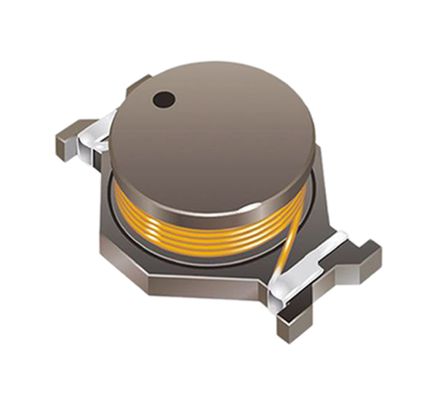

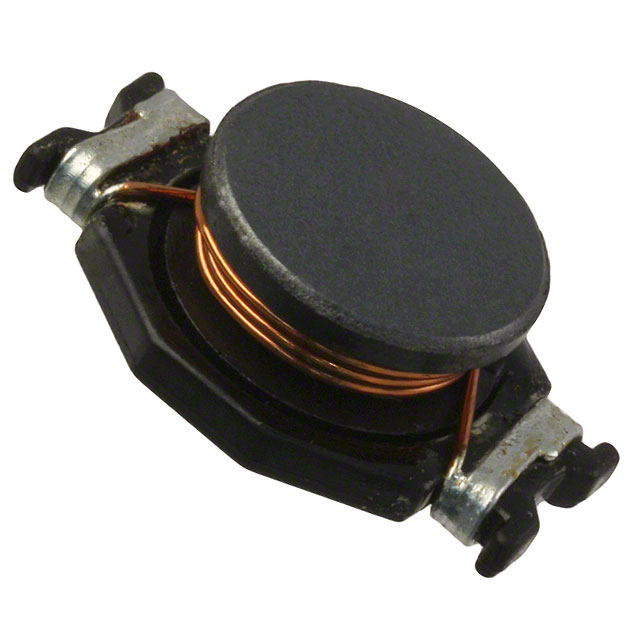

BOURNS  SDR2207-101KL  表面贴装功率电感器, SDR2207系列, 100 µH, ± 10%, 非屏蔽, 0.168 ohm, 2.2 A

SDR2207 系列线绕扼流圈

表面安装尺寸为 22 x 15 mm

仅 7 mm 高

铁氧体 DR 磁芯结构

较高额定电流

低直流电阻抗

应用于电源滤波中

欧时:
### SDR2207 系列线绕扼流圈表面安装尺寸为 22 x 15 mm 仅 7 mm 高 铁氧体 DR 磁芯结构 较高额定电流 低直流电阻抗 应用于电源滤波中 ### Bourns 非标准表面安装电感器（扼流圈）

得捷:
FIXED IND 100UH 2.2A 168MOHM SMD

立创商城:
100uH ±10% 2.2A 168mΩ

e络盟:
功率电感SMD, 100 µH, 2.2 A, 非屏蔽, 3 A, SDR2207系列, 22mm x 15mm x 7mm

艾睿:
This power SDR2207-101KL surface mount inductor from Bourns is ideal for saving valuable space on a PCB. This SMD inductor has an operating temperature range of -40 °C to 125 °C. This product will be shipped in tape and reel packaging so that components can be mounted effectively. It has an inductance of 100u H. Its test frequency is 100K Hz, while its minimum self-resonant frequency is 6.2M Hz. This SMD inductor has a maximum DC current of 2.2 A with a maximum resistance of 168m Ohm. This product is 22.3 mm long, 7.8 mm tall and 15.3 mm deep. It has a tolerance of 10%. This device utilizes wirewound technology.

Allied Electronics:
Inductor; High Current; Ind 100uH; Tol 10%; Cur 2.2A; SMT; Case 2207

安富利:
Ind Power Wirewound 100uH 10% 100KHz 18Q-Factor Ferrite 2.2A T/R

TME:
Inductor: wire; SMD; 100uH; 2.2A; ±10%; Q:18; Ø:22mm; H:7mm; 168mΩ

Verical:
Inductor Power Unshielded Wirewound 100uH 10% 100KHz 18Q-Factor Ferrite 2.2A 0.168Ohm DCR T/R

Newark:
# BOURNS  SDR2207-101KL  Surface Mount Power Inductor, SDR2207 Series, 100 µH, 2.2 A, 3 A, Unshielded, 0.168 ohm

MASTER:
Inductor Power Wirewound 100uH 10% 100KHz 18Q-Factor Ferrite 2.2A 168mOhm DCR T/R

Online Components:
Inductor Power Wirewound 100uH 10% 100KHz 18Q-Factor Ferrite 2.2A 168mOhm DCR T/R

Electro Sonic:
Inductor Power Wirewound 100uH 10% 100KHz 18Q-Factor Ferrite 2.2A 168mOhm DCR T/R
