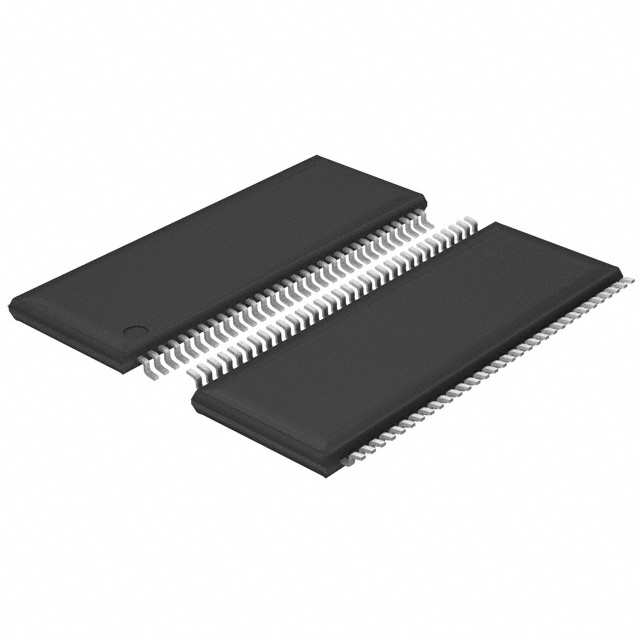

TEXAS INSTRUMENTS SN65LVDM1676DGG 芯片, 收发器, LVDS, 200MBPS, TSSOP-64
The SN65LVDM1676 and SN65LVDM1677 integrated termination are sixteen differential line transmitters or receivers tranceivers that use low-voltage differential signaling LVDS to achieve signaling rates up to 200 Mbps per transceiver configured as a receiver and up to 650 Mbps per transceiver configured as a transmitter. These products are similar to A/EIA-644 standard compliant devices SN65LVDS counterparts except that the output current of the drivers are doubled. This modification provides a minimum differential output voltage magnitude of 247 mV into a 50- load and allows double-terminated lines and half-duplex operation. The receivers detect a voltage difference of 100 mV with up to 1 V of ground potential difference between a transmitter and receiver.
The intended application of this device and signaling technique is for point-to-point baseband data transmission over controlled impedance media of approximately 100 . The transmission media may be printed-circuit board traces, backplanes, or cables. The large number of transceivers integrated into the same substrate along with the low pulse skew of balanced signaling, allows extremely precise timing alignment of clock and data for synchronous parallel data transfers. Note: The ultimate rate and distance of data transfer is dependent upon the attenuation characteristics of the media, the noise coupling to the environment, and other system characteristics.
The SN65LVDM1676 and SN65LVDM1677 are characterized for operation from -40°C to 85°C.
电源电压DC 3.00V min
供电电流 140 mA
电路数 16
针脚数 64
输入电流 175 mA
耗散功率 2094 W
数据速率 630 Mbps
输入电流Min 20 μA
工作温度Max 85 ℃
工作温度Min -40 ℃
耗散功率Max 2094 mW
电源电压 3V ~ 3.6V
电源电压Max 3.6 V
电源电压Min 3 V
安装方式 Surface Mount
引脚数 64
封装 TSSOP-64
封装 TSSOP-64
工作温度 -40℃ ~ 85℃
产品生命周期 Active
包装方式 Tube
RoHS标准 RoHS Compliant
含铅标准 Lead Free
REACH SVHC标准 No SVHC
REACH SVHC版本 2014/12/17
ECCN代码 EAR99
型号/品牌 | 代替类型 | 替代型号对比 |
---|---|---|
SN65LVDM1676DGG TI 德州仪器 | 当前型号 | 当前型号 |
SN65LVDM1676DGGR 德州仪器 | 类似代替 | SN65LVDM1676DGG和SN65LVDM1676DGGR的区别 |
SN65LVDM1676DGGRG4 德州仪器 | 类似代替 | SN65LVDM1676DGG和SN65LVDM1676DGGRG4的区别 |
SN65LVDM1676DGGG4 德州仪器 | 类似代替 | SN65LVDM1676DGG和SN65LVDM1676DGGG4的区别 |
