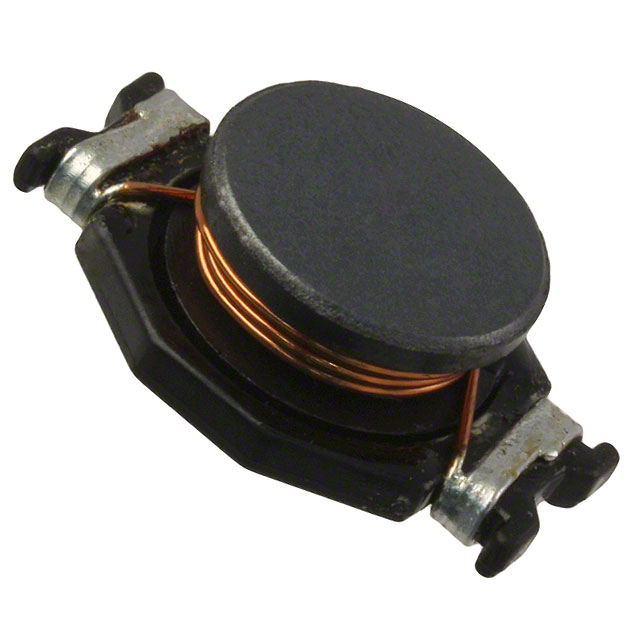

BOURNS  SDR2207-1R2ML  表面贴装功率电感器, SDR2207系列, 1.2 µH, ± 20%, 非屏蔽, 3800 µohm, 15 A

1.2 µH 无屏蔽 绕线 器 15 A 3.8 毫欧最大 非标准


得捷:
FIXED IND 1.2UH 15A 3.8 MOHM SMD


e络盟:
BOURNS  SDR2207-1R2ML  表面贴装功率电感器, SDR2207系列, 1.2 µH, ± 20%, 非屏蔽, 3800 µohm, 15 A


艾睿:
Use this power SDR2207-1R2ML surface mount inductor from Bourns to make any circuit look clean and compact. This SMD inductor has an operating temperature range of -40 °C to 125 °C. In order to guarantee safe delivery and allow for quick mounting of this component after delivery, it will be enclosed in tape and reel packaging during shipment. It has an inductance of 1.2u H. It has a tolerance of 20%. This product is 22.3 mm long, 7.8 mm tall and 15.3 mm deep. This SMD inductor has a maximum DC current of 15 A with a maximum resistance of 3.8m Ohm. This device utilizes wirewound technology. Its test frequency is 100K Hz, while its minimum self-resonant frequency is 70M Hz.


安富利:
Ind Power Wirewound 1.2uH 20% 100KHz 30Q-Factor Ferrite 15A T/R


Chip1Stop:
Ind Power Wirewound 1.2uH 20% 100KHz 30Q-Factor Ferrite 15A T/R


Verical:
Inductor Power Wirewound 1.2uH 20% 100KHz 30Q-Factor Ferrite 15A 0.0038Ohm DCR T/R


Electro Sonic:
Inductor Power Wirewound 1.2uH 20% 100KHz 30Q-Factor Ferrite 15A 3.8mOhm DCR T/R


SDR2207-1R2ML中文资料参数规格
技术参数

额定电流 15 A

容差 ±20 %

电感 1.2 µH

自谐频率 70 MHz

Q值 30.0

电感公差 ±20 %

测试频率 100 kHz

电阻DC) ≤3.8 mΩ

工作温度Max 125 ℃

工作温度Min -40 ℃

电阻DC Max 0.0038 Ω

封装参数

安装方式 Surface Mount

封装 22mm x 15mm x 7mm

外形尺寸

长度 22 mm

宽度 15 mm

高度 7.8 mm

封装 22mm x 15mm x 7mm

物理参数

工作温度 -40℃ ~ 125℃

其他

产品生命周期 Active

包装方式 Cut Tape CT

符合标准

RoHS标准 RoHS Compliant

含铅标准 Lead Free

REACH SVHC标准 No SVHC

REACH SVHC版本 2016/06/20

数据手册

SDR2207-1R2ML引脚图与封装图

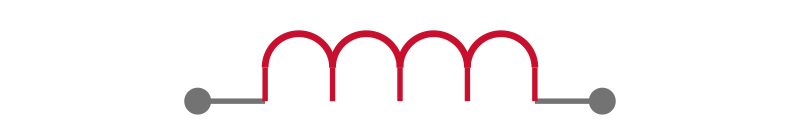

SDR2207-1R2ML引脚图

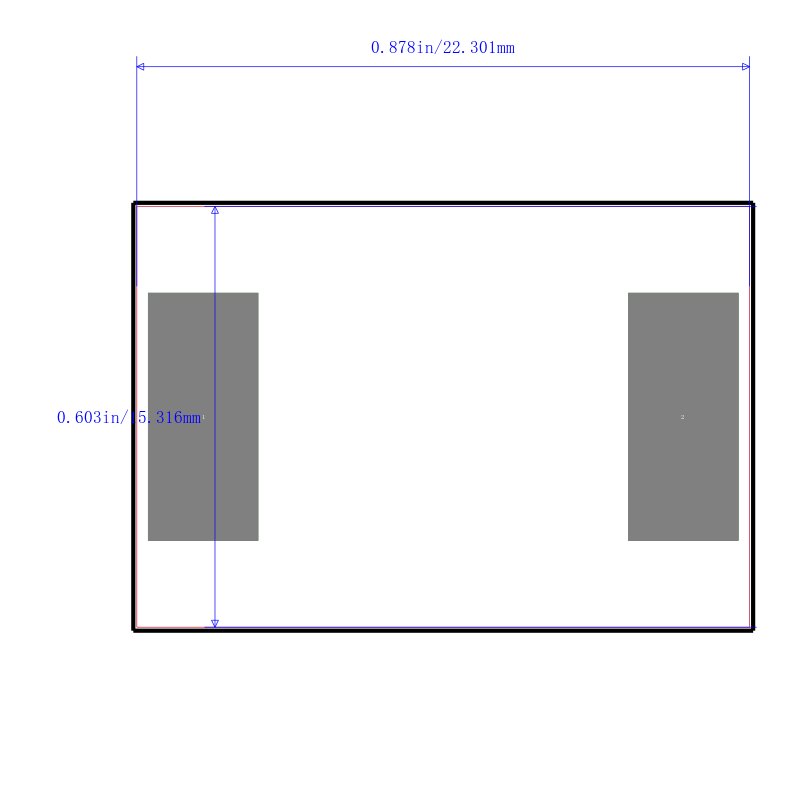

SDR2207-1R2ML封装图

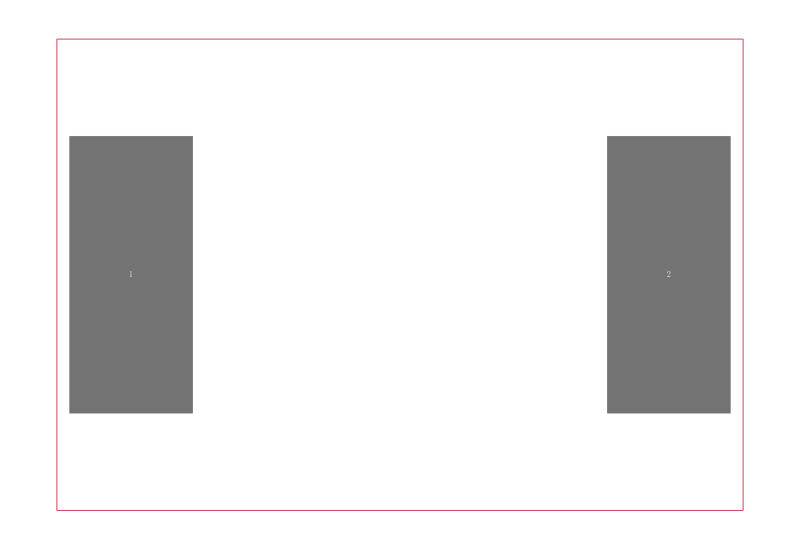

SDR2207-1R2ML封装焊盘图
在线购买SDR2207-1R2ML
型号: SDR2207-1R2ML
制造商: Bourns J.W. Miller 伯恩斯
描述:BOURNS  SDR2207-1R2ML  表面贴装功率电感器, SDR2207系列, 1.2 µH, ± 20%, 非屏蔽, 3800 µohm, 15 A
替代型号SDR2207-1R2ML
型号/品牌 代替类型 替代型号对比

SDR2207-1R2ML

Bourns J.W. Miller 伯恩斯

当前型号

当前型号

SDR2207-1R2M

伯恩斯

功能相似

SDR2207-1R2ML和SDR2207-1R2M的区别
