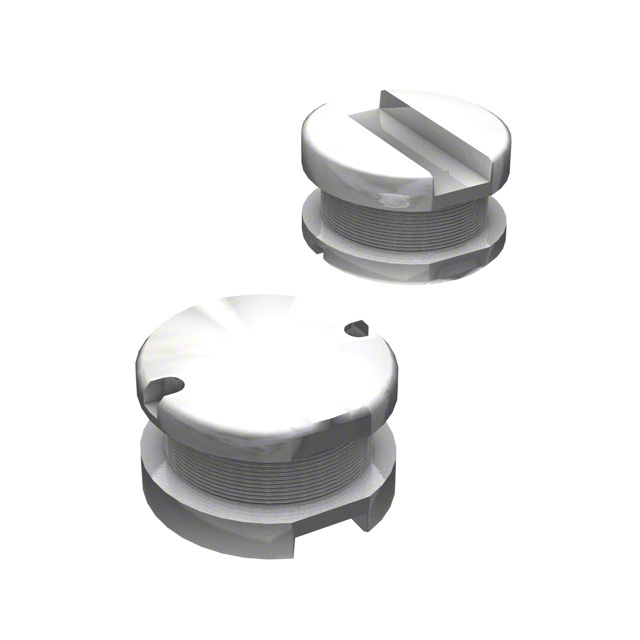

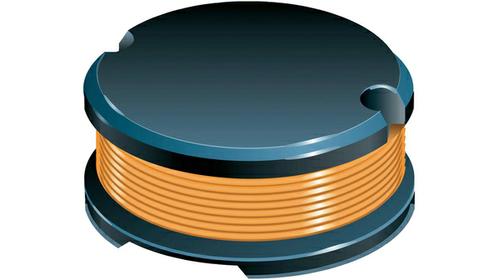

BOURNS SDR1006-2R2ML 表面贴装功率电感器, SDR1006系列, 2.2 µH, ± 20%, 非屏蔽, 0.021 ohm, 5.4 A
SDR1006 系列线绕扼流圈
提供 E12 系列
小型设计,最大直径仅 9.8mm
符合 RoHs
应用于直流/直流转换器的输入/输出以及电源
立创商城:
2.2uH ±20% 5.4A 21mΩ
欧时:
Bourns SDR1006 系列 铁氧体芯材 2.2 μH 绕线贴片电感器 SDR1006-2R2ML, ±20%容差, 5.4A Idc
得捷:
FIXED IND 2.2UH 5.4A 21 MOHM SMD
贸泽:
Fixed Inductors 2.2uH 20% SMD 1006
e络盟:
功率电感SMD, 2.2 µH, 5.4 A, 非屏蔽, 10 A, SDR1006系列, 9.8mm x 9.8mm x 5.8mm
艾睿:
Is space on a PCB a limiting factor for your electronic circuit design? Then use this power SDR1006-2R2ML surface mount inductor from Bourns to save valuable space. This SMD inductor has a minimum operating temperature of -40 °C and a maximum of 125 °C. This product will be shipped in tape and reel packaging so that components can be mounted effectively. This SMD inductor has a maximum DC current of 5.4 A with a maximum resistance of 21m Ohm. It has an inductance of 2.2u H. It has a tolerance of 20%. Its test frequency is 1K Hz, while its minimum self-resonant frequency is 68M Hz. This product is 5.8 mm tall with a diameter of 9.8 mm. This device is made with wirewound technology.
Allied Electronics:
WireWound SMD Inductor w/ FerriteCore, 2.2 uH +/-20%WireWound 5.4A Idc
安富利:
Ind Power Wirewound 2.2uH 20% 1KHz 35Q-Factor Ferrite 5.4A T/R
Chip1Stop:
Ind Power Wirewound 2.2uH 20% 1KHz 35Q-Factor Ferrite 5.4A T/R
Verical:
Inductor Power Unshielded Wirewound 2.2uH 20% 1KHz 35Q-Factor Ferrite 5.4A 0.021Ohm DCR T/R
Newark:
# BOURNS SDR1006-2R2ML Surface Mount Power Inductor, SDR1006 Series, 2.2 µH, 5.4 A, 10 A, Unshielded, 0.021 ohm
Electro Sonic:
Inductor Power Wirewound 2.2uH 20% 1KHz 35Q-Factor Ferrite 5.4A 21mOhm DCR T/R
额定电流 5.4 A
容差 ±20 %
电感 2.2 µH
自谐频率 68 MHz
Q值 35.0
共振频率 68.0 MHz
电感公差 ±20 %
测试频率 1 kHz
电阻DC) 0.021 Ω
工作温度Max 125 ℃
工作温度Min -40 ℃
电阻DC Max 0.021 Ω
安装方式 Surface Mount
引脚数 2
封装 1006

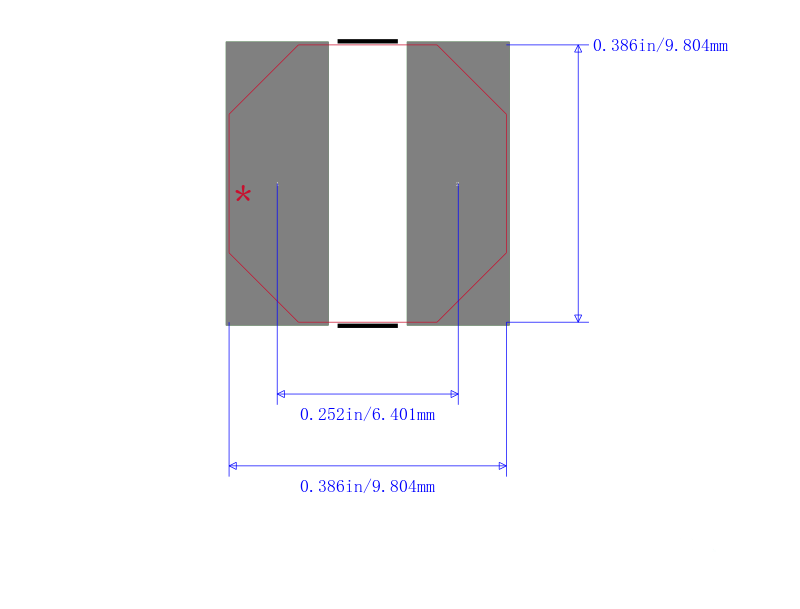

长度 9.8 mm
高度 5.8 mm
封装 1006
工作温度 -40℃ ~ 125℃
产品生命周期 Active
包装方式 Tape & Reel TR
RoHS标准 RoHS Compliant
含铅标准 Lead Free
REACH SVHC标准 No SVHC
REACH SVHC版本 2016/06/20
型号/品牌 | 代替类型 | 替代型号对比 |
---|---|---|
SDR1006-2R2ML Bourns J.W. Miller 伯恩斯 | 当前型号 | 当前型号 |
SDR1006-2R2M 伯恩斯 | 功能相似 | SDR1006-2R2ML和SDR1006-2R2M的区别 |
