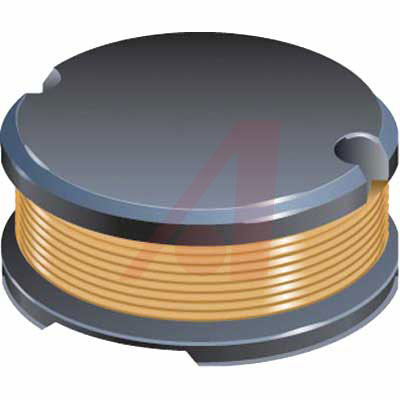

BOURNS SDR1006-330KL 表面贴装功率电感器, SDR1006系列, 33 µH, ± 10%, 非屏蔽, 0.12 ohm, 1.5 A
SDR1006 系列线绕扼流圈
提供 E12 系列
小型设计,最大直径仅 9.8mm
符合 RoHs
应用于直流/直流转换器的输入/输出以及电源
得捷:
FIXED IND 33UH 1.5A 120 MOHM SMD
立创商城:
33uH ±10% 1.5A 120mΩ
欧时:
Bourns SDR1006 系列 铁氧体芯材 33 μH 绕线贴片电感器 SDR1006-330KL, 1.5A Idc Q:25
e络盟:
功率电感SMD, 33 µH, 1.5 A, 非屏蔽, 2.9 A, SDR1006 Series, 9.8mm x 9.8mm x 5.8mm
艾睿:
Make any circuit look clean and compact using this power SDR1006-330KL surface mount inductor from Bourns. This SMD inductor has an operating temperature range of -40 °C to 125 °C. In order to guarantee safe delivery and allow for quick mounting of this component after delivery, it will be enclosed in tape and reel packaging during shipment. This device utilizes wirewound technology. It has a tolerance of 10%. It has an inductance of 33u H. Its test frequency is 1K Hz, while its minimum self-resonant frequency is 10M Hz. This product is 5.8 mm tall with a diameter of 9.8 mm. This SMD inductor has a maximum DC current of 1.5 A with a maximum resistance of 120m Ohm.
Allied Electronics:
Inductor; Filter; Ind 33uH; Tol 10%; Cur 1.5A; SMT; Case 1006; DCR 0.12 Ohms
安富利:
Ind Power Wirewound 33uH 10% 1KHz 25Q-Factor Ferrite 1.5A T/R
Chip1Stop:
Inductor Power Wirewound 33uH 10% 1KHz 25Q-Factor Ferrite 1.5A 120mOhm DCR T/R
TME:
Inductor: wire; SMD; 33uH; 1.5A; ±10%; Q:25; Ø:10mm; H:6mm; 120mΩ
Verical:
Inductor Power Wirewound 33uH 10% 1KHz 25Q-Factor Ferrite 1.5A 0.12Ohm DCR T/R
Newark:
# BOURNS SDR1006-330KL Surface Mount Power Inductor, SDR1006 Series, 33 µH, 1.5 A, 2.9 A, Unshielded, 0.12 ohm
MASTER:
Inductor Power Wirewound 33uH 10% 1KHz 25Q-Factor Ferrite 1.5A 120mOhm DCR T/R
Online Components:
Inductor Power Wirewound 33uH 10% 1KHz 25Q-Factor Ferrite 1.5A 120mOhm DCR T/R
Electro Sonic:
Inductor Power Wirewound 33uH 10% 1KHz 25Q-Factor Ferrite 1.5A 120mOhm DCR T/R
额定电流 1.5 A
容差 ±10 %
电感 33 µH
自谐频率 10 MHz
Q值 25.0
电阻 120 mΩ
共振频率 10 MHz
电感公差 ±10 %
测试频率 1 kHz
电阻DC) 0.12 Ω
工作温度Max 125 ℃
工作温度Min -40 ℃
工作结温Max 125 ℃
电阻DC Max 0.12 Ω
安装方式 Surface Mount
引脚数 2
封装 1006
高度 5.8 mm
封装 1006
工作温度 -40℃ ~ 125℃
产品生命周期 Active
包装方式 Tape & Reel TR
RoHS标准 RoHS Compliant
含铅标准 Lead Free
REACH SVHC标准 No SVHC
REACH SVHC版本 2016/06/20
ECCN代码 EAR99
HTS代码 8504508000
型号/品牌 | 代替类型 | 替代型号对比 |
---|---|---|
SDR1006-330KL Bourns J.W. Miller 伯恩斯 | 当前型号 | 当前型号 |
HM79-60330LFTR13 TT Electronics/BI | 类似代替 | SDR1006-330KL和HM79-60330LFTR13的区别 |
PM105-330M-RC 伯恩斯 | 功能相似 | SDR1006-330KL和PM105-330M-RC的区别 |
PM105-330K-RC 伯恩斯 | 功能相似 | SDR1006-330KL和PM105-330K-RC的区别 |
