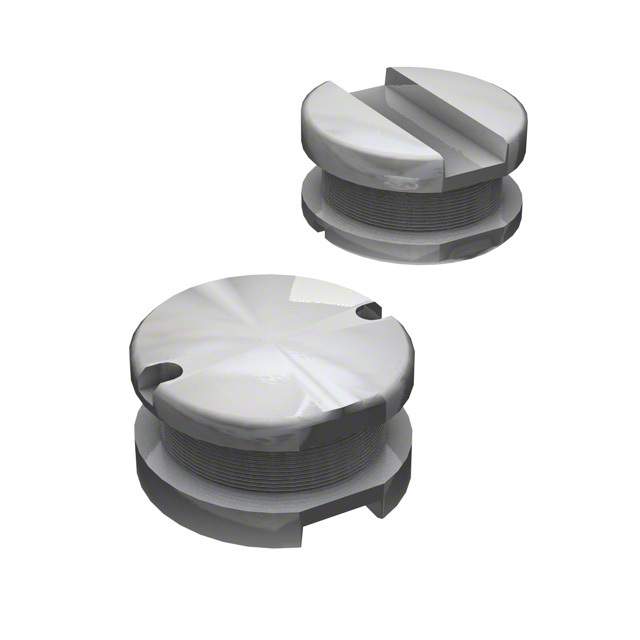

BOURNS SDR1307-391KL 表面贴装功率电感器, SDR1307系列, 390 µH, ± 10%, 非屏蔽, 0.6 ohm, 1 A
390 µH 无屏蔽 绕线 器 1 A 600 毫欧最大 非标准
得捷:
FIXED IND 390UH 1A 600 MOHM SMD
立创商城:
390uH ±10% 1A 600mΩ
e络盟:
功率电感SMD, 390 µH, 1 A, 非屏蔽, 1.5 A, SDR1307系列, 13mm x 13mm x 7mm
艾睿:
Is space on a PCB a limiting factor for your electronic circuit design? Then use this power SDR1307-391KL surface mount inductor from Bourns to save valuable space. This SMD inductor has a minimum operating temperature of -40 °C and a maximum of 125 °C. This product will be shipped in tape and reel packaging to allow for quick mounting and safe delivery. It has an inductance of 390u H. This SMD inductor has a maximum DC current of 1 A with a maximum resistance of 600m Ohm. This product is 7.3 mm tall with a diameter of 13.5 mm. This device is made with wirewound technology. Its test frequency is 100K Hz, while its minimum self-resonant frequency is 2.5M Hz. It has a tolerance of 10%.
安富利:
Ind Power Wirewound 390uH 10% 100KHz 12Q-Factor Ferrite 1A T/R
Verical:
Inductor Power Wirewound 390uH 10% 100KHz 12Q-Factor Ferrite 1A 0.6Ohm DCR T/R
Newark:
# BOURNS SDR1307-391KL Surface Mount Power Inductor, SDR1307 Series, 390 H, 10%, Unshielded, 0.6 ohm, 1 A
MASTER:
Inductor Power Wirewound 390uH 10% 100KHz 12Q-Factor Ferrite 1A 600mOhm DCR T/R
Online Components:
Inductor Power Wirewound 390uH 10% 100KHz 12Q-Factor Ferrite 1A 600mOhm DCR T/R
Electro Sonic:
Inductor Power Wirewound 390uH 10% 100KHz 12Q-Factor Ferrite 1A 600mOhm DCR T/R
额定电流 1 A
容差 ±10 %
电感 390 µH
自谐频率 2.5 MHz
Q值 12.0
电感公差 ±10 %
测试频率 100 kHz
电阻DC) ≤600 mΩ
工作温度Max 125 ℃
工作温度Min -40 ℃
电阻DC Max 0.6 Ω
安装方式 Surface Mount
封装 13mm x 13mm x 7mm
宽度 13 mm
高度 7.3 mm
封装 13mm x 13mm x 7mm
工作温度 -40℃ ~ 125℃
产品生命周期 Active
包装方式 Tape & Reel TR
RoHS标准 RoHS Compliant
含铅标准 Lead Free
REACH SVHC标准 No SVHC
REACH SVHC版本 2016/06/20
ECCN代码 EAR99
HTS代码 8504508000
