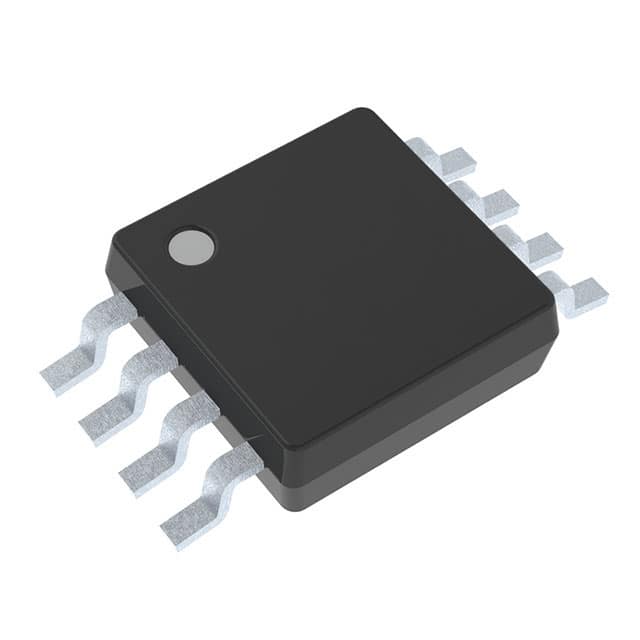

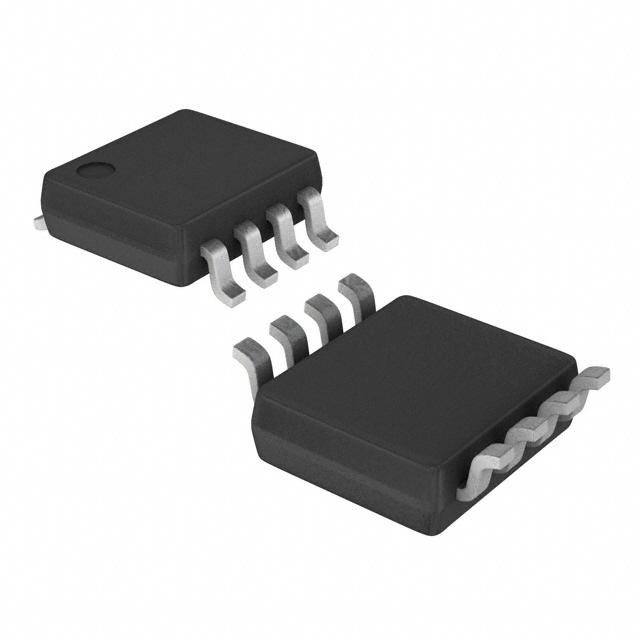

TEXAS INSTRUMENTS SN65LVDT101DGK 芯片, 差分中继器, 2GBPS, MSOP8
The is a 2Gbps LVDS/LVPECL/CML to LVDS Repeater/Translator accepts low-voltage differential signaling LVDS, positive-emitter-coupled logic PECL or current-mode logic CML input signals at rates up to 2Gbps and repeats it as either an LVDS or PECL output signal. The signal path through the device is differential for low radiated emissions and minimal added jitter. The outputs of SN65LVDT101 are LVDS levels as defined by A/EIA-644-A. It includes an 110R differential line termination resistor for less board space, fewer components and the shortest stub length possible. They do not include the VBB voltage reference found in the SN65LVDS101. VBB provides a voltage reference of typically 1.35V below VCC for use in receiving single-ended input signals and is particularly useful with single-ended 3.3V PECL inputs. When VBB is not used, it should be unconnected or open.
电源电压DC 3.00V min
输出电流 0.012 mA
供电电流 50 mA
通道数 1
针脚数 8
耗散功率 481 W
数据速率 2.00 Gbps
输入电容 0.6 pF
输入电流Min 33 μA
输入数 2
工作温度Max 85 ℃
工作温度Min -40 ℃
耗散功率Max 377 mW
电源电压 3V ~ 3.6V
电源电压Max 3.6 V
电源电压Min 3 V
安装方式 Surface Mount
引脚数 8
封装 MSOP-8
封装 MSOP-8
工作温度 -40℃ ~ 85℃
产品生命周期 Active
包装方式 Each
制造应用 -
RoHS标准 RoHS Compliant
含铅标准 Lead Free
REACH SVHC标准 No SVHC
REACH SVHC版本 2015/06/15
ECCN代码 EAR99
型号/品牌 | 代替类型 | 替代型号对比 |
---|---|---|
SN65LVDT101DGK TI 德州仪器 | 当前型号 | 当前型号 |
SN65LVDS100DGK 德州仪器 | 类似代替 | SN65LVDT101DGK和SN65LVDS100DGK的区别 |
SN65LVDT100DGK 德州仪器 | 类似代替 | SN65LVDT101DGK和SN65LVDT100DGK的区别 |
SN65LVDS100DGKR 德州仪器 | 类似代替 | SN65LVDT101DGK和SN65LVDS100DGKR的区别 |
