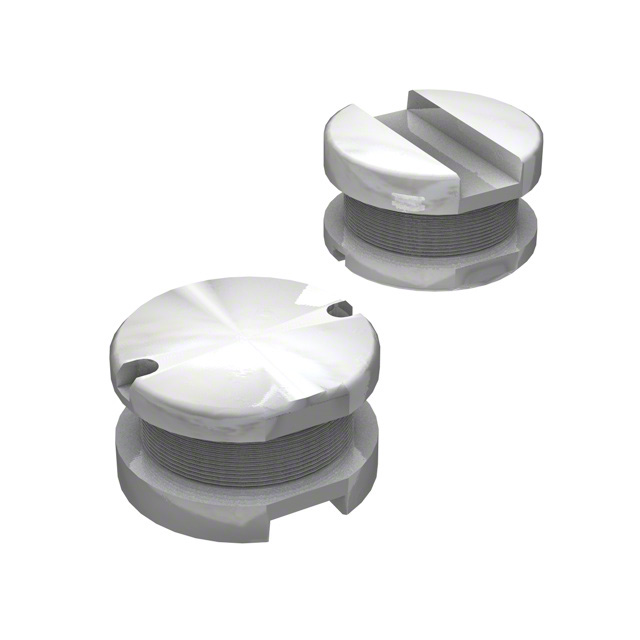

SDR0503系列 - 贴片功率电感 SDR0503 Series - SMD Power Inductors
Inductor Power Wirewound 12mH 5% 1KHz 30Q-Factor Ferrite 25mA 148Ohm DCR Automotive T/R
立创商城:
12mH ±5% 25mA 148Ω
得捷:
FIXED IND 12MH 25MA 148 OHM SMD
艾睿:

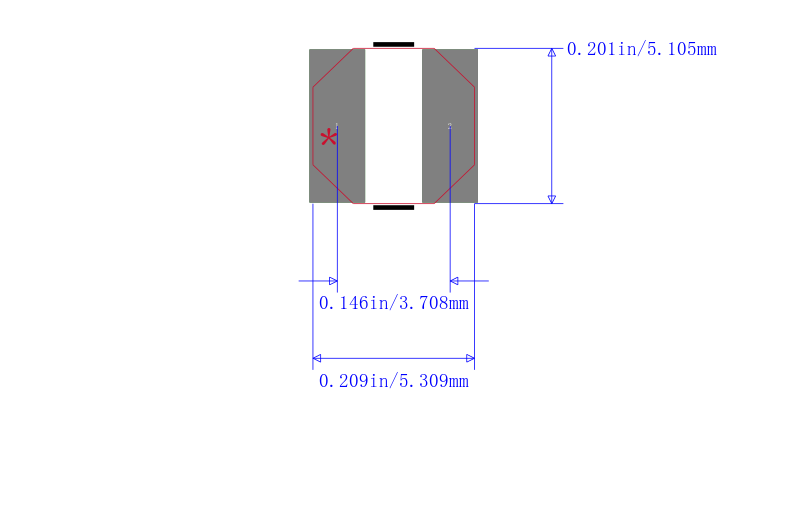

This power SDR0503-123JL surface mount inductor from Bourns is ideal for saving valuable space on a PCB. This SMD inductor has a minimum operating temperature of -40 °C and a maximum of 125 °C. Tape and reel packaging will encase the product during shipment, ensuring safe delivery and enabling quick mounting of components. This product is 5.3 mm long, 3.3 mm tall and 5.1 mm deep. This SMD inductor has a maximum DC current of 25m A with a maximum resistance of 148 Ohm. It has a tolerance of 5%. It has an inductance of 12m H. Its test frequency is 1K Hz, while its minimum self-resonant frequency is 1M Hz. This device is made with wirewound technology.
安富利:
Ind Power Wirewound 12mH 5% 1KHz 30Q-Factor Ferrite 25mA T/R
Verical:
Inductor Power Unshielded Wirewound 12000uH 5% 1KHz 30Q-Factor Ferrite 0.025A 148Ohm DCR Automotive T/R
Online Components:
Inductor Power Wirewound 12mH 5% 1KHz 30Q-Factor Ferrite 25mA 148Ohm DCR Automotive T/R
Electro Sonic:
Inductor Power Wirewound 12mH 5% 1KHz 30Q-Factor Ferrite 25mA 148Ohm DCR Automotive T/R
额定电流 25 mA
容差 ±5 %
电感 12 mH
自谐频率 1 MHz
Q值 30.0
电感公差 ±5 %
测试频率 1 kHz
电阻DC) 148 Ω
工作温度Max 125 ℃
工作温度Min -40 ℃
电阻DC Max 148 Ω
安装方式 Surface Mount
封装 -
高度 3.3 mm
封装 -
工作温度 -40℃ ~ 125℃
产品生命周期 Active
包装方式 Tape & Reel TR
RoHS标准 RoHS Compliant
含铅标准 Lead Free
REACH SVHC标准 No SVHC
REACH SVHC版本 2016/06/20
型号/品牌 | 代替类型 | 替代型号对比 |
---|---|---|
SDR0503-123JL Bourns J.W. Miller 伯恩斯 | 当前型号 | 当前型号 |
SDR0503-123J 伯恩斯 | 功能相似 | SDR0503-123JL和SDR0503-123J的区别 |
