SDR0604-121KL

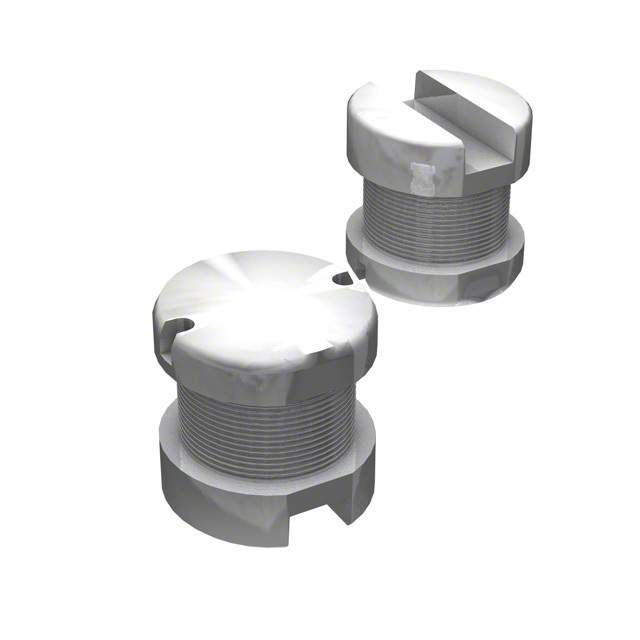

BOURNS  SDR0604-121KL  表面贴装功率电感器, SDR0604系列, 120 µH, ± 10%, 非屏蔽, 0.93 ohm, 480 mA

SDR0604 系列线绕扼流圈

提供 E12 系列

直径小，最大仅 5.8mm

剖面 4.8mm

符合 RoHs

应用于直流/直流转换器的输入/输出以及电源

欧时:
### SDR0604 系列线绕扼流圈提供 E12 系列 直径小，最大仅 5.8mm 剖面 4.8mm 符合 RoHs 应用于直流/直流转换器的输入/输出以及电源 ### Bourns 非标准表面安装电感器（扼流圈）

得捷:
FIXED IND 120UH 480MA 930MOHM SM

立创商城:
120uH ±10% 480mA 930mΩ

e络盟:
功率电感SMD, 120 µH, 480 mA, 非屏蔽, 600 mA, SDR0604系列, 5.8mm x 5.8mm x 4.8mm

艾睿:
Is space on a PCB a limiting factor for your electronic circuit design? Then use this power SDR0604-121KL surface mount inductor from Bourns to save valuable space. This SMD inductor has an operating temperature range of -40 °C to 125 °C. In order to guarantee safe delivery and allow for quick mounting of this component after delivery, it will be enclosed in tape and reel packaging during shipment. It has a tolerance of 10%. This device utilizes wirewound technology. This product is 4.8 mm tall with a diameter of 5.8 mm. It has an inductance of 120u H. This SMD inductor has a maximum DC current of 480m A with a maximum resistance of 930m Ohm. Its test frequency is 1K Hz, while its minimum self-resonant frequency is 7M Hz.

Allied Electronics:
Inductor; Power; Non-Shielded; Wirewound; 120uH; 10%; 0.48A

安富利:
Ind Power Wirewound 120uH 10% 1KHz 22Q-Factor Ferrite 480mA T/R

Chip1Stop:
Inductor Power Wirewound 120uH 10% 1KHz 22Q-Factor Ferrite 480mA 930mOhm DCR T/R

Verical:
Inductor Power Unshielded Wirewound 120uH 10% 1KHz 22Q-Factor Ferrite 0.48A 0.93Ohm DCR Automotive T/R

Newark:
# BOURNS  SDR0604-121KL  Surface Mount Power Inductor, SDR0604 Series, 120 µH, 480 mA, 600 mA, Unshielded, 0.93 ohm

MASTER:
Inductor Power Wirewound 120uH 10% 1KHz 22Q-Factor Ferrite 480mA 930mOhm DCR Automotive T/R

Online Components:
Inductor Power Wirewound 120uH 10% 1KHz 22Q-Factor Ferrite 480mA 930mOhm DCR Automotive T/R

Electro Sonic:
Inductor Power Wirewound 120uH 10% 1KHz 22Q-Factor Ferrite 480mA 930mOhm DCR Automotive T/R
