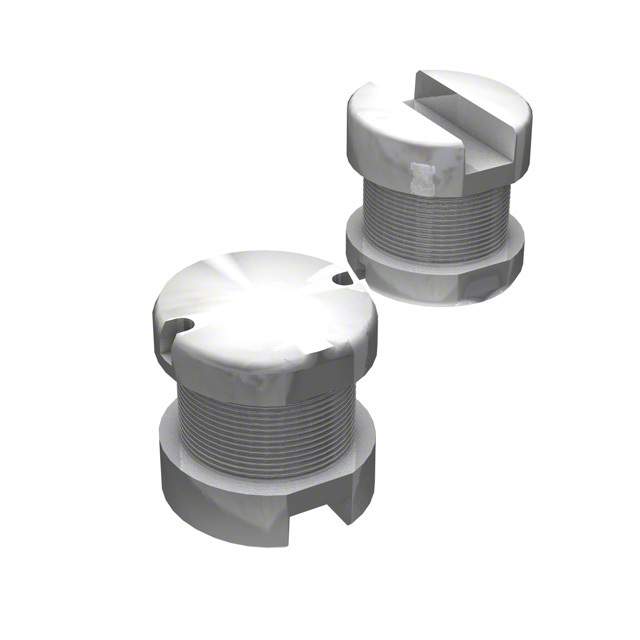

BOURNS SDR0604-1R5ML 表面贴装功率电感器, SDR0604系列, 1.5 µH, ± 20%, 非屏蔽, 0.03 ohm, 3.6 A
SDR0604 系列线绕扼流圈
提供 E12 系列
直径小,最大仅 5.8mm
剖面 4.8mm
符合 RoHs
应用于直流/直流转换器的输入/输出以及电源
立创商城:
1.5uH ±20% 3.6A 30mΩ
欧时:
Bourns SDR0604 系列 铁氧体芯材 1.5 μH 绕线贴片电感器 SDR0604-1R5ML, ±20%容差, 3.6A Idc
得捷:
FIXED IND 1.5UH 3.6A 30 MOHM SMD
e络盟:
BOURNS SDR0604-1R5ML 表面贴装功率电感器, SDR0604系列, 1.5 µH, ± 20%, 非屏蔽, 0.03 ohm, 3.6 A
艾睿:
Save valuable space on a PCB with this power SDR0604-1R5ML surface mount inductor from Bourns. This SMD inductor has a minimum operating temperature of -40 °C and a maximum of 125 °C. This product will be shipped in tape and reel packaging to allow for quick mounting and safe delivery. It has a tolerance of 20%. This product is 4.8 mm tall with a diameter of 5.8 mm. This device is made with wirewound technology. This SMD inductor has a maximum DC current of 3.6 A with a maximum resistance of 30m Ohm. Its test frequency is 1K Hz, while its minimum self-resonant frequency is 108M Hz. It has an inductance of 1.5u H.
Allied Electronics:
WireWound SMD Inductor w/ FerriteCore, 1.5 uH +/-20%WireWound 3.6A Idc
安富利:
Ind Power Wirewound 1.5uH 20% 1KHz 32Q-Factor Ferrite 3.6A T/R
Chip1Stop:
Ind Power Wirewound 1.5uH 20% 1KHz 32Q-Factor Ferrite 3.6A T/R
Verical:
Inductor Power Unshielded Wirewound 1.5uH 20% 1KHz 32Q-Factor Ferrite 3.6A 0.03Ohm DCR Automotive T/R
Online Components:
Inductor Power Wirewound 1.5uH 20% 1KHz 32Q-Factor Ferrite 3.6A 30mOhm DCR Automotive T/R
Electro Sonic:
Inductor Power Wirewound 1.5uH 20% 1KHz 32Q-Factor Ferrite 3.6A 30mOhm DCR Automotive T/R
额定电流 3.6 A
容差 ±20 %
电感 1.5 µH
自谐频率 108 MHz
Q值 32.0
共振频率 108 MHz
电感公差 ±20 %
测试频率 1 kHz
电阻DC) 0.03 Ω
工作温度Max 125 ℃
工作温度Min -40 ℃
电阻DC Max 0.03 Ω
安装方式 Surface Mount
引脚数 2
封装 5.8mm x 5.8mm x 4.8mm
长度 5.8 mm
高度 4.8 mm
封装 5.8mm x 5.8mm x 4.8mm
工作温度 -40℃ ~ 125℃
产品生命周期 Active
包装方式 Tape & Reel TR
RoHS标准 RoHS Compliant
含铅标准 Lead Free
REACH SVHC标准 No SVHC
REACH SVHC版本 2016/06/20
