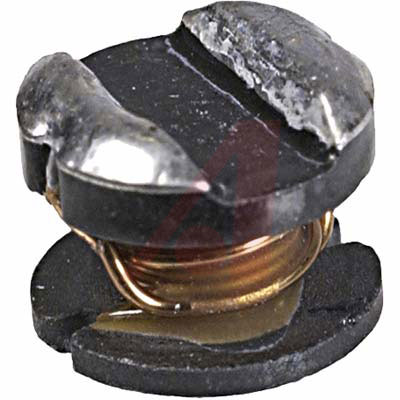

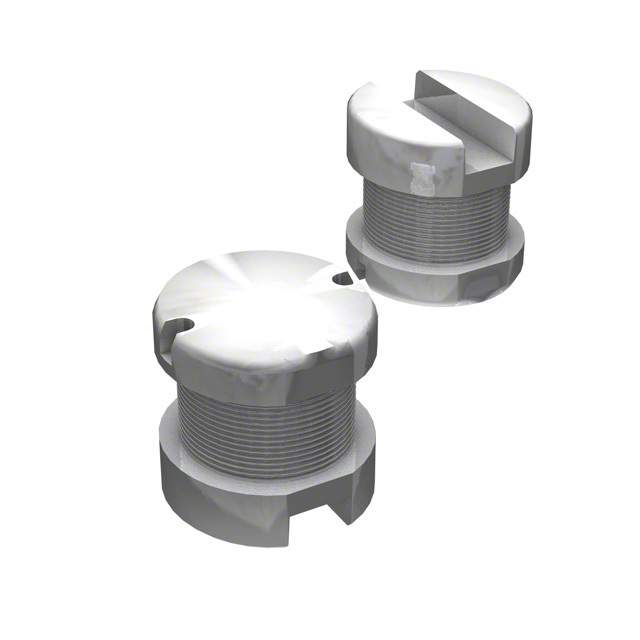

SDR0604-150YL

BOURNS  SDR0604-150YL  表面贴装功率电感器, SDR0604系列, 15 µH, ± 15%, 非屏蔽, 0.14 ohm, 1.3 A

SDR0604 系列线绕扼流圈

提供 E12 系列

直径小，最大仅 5.8mm

剖面 4.8mm

符合 RoHs

应用于直流/直流转换器的输入/输出以及电源

得捷:
FIXED IND 15UH 1.3A 140 MOHM SMD

立创商城:
15uH ±15% 1.3A 140mΩ

欧时:
### SDR0604 系列线绕扼流圈提供 E12 系列 直径小，最大仅 5.8mm 剖面 4.8mm 符合 RoHs 应用于直流/直流转换器的输入/输出以及电源 ### Bourns 非标准表面安装电感器（扼流圈）

贸泽:
Fixed Inductors 15uH 15% SMD 0604

艾睿:
Make any circuit look clean and compact using this power SDR0604-150YL surface mount inductor from Bourns. This SMD inductor has an operating temperature range of -40 °C to 125 °C. This product will be shipped in tape and reel packaging to allow for quick mounting and safe delivery. This device utilizes wirewound technology. It has a tolerance of 15%. Its test frequency is 1K Hz, while its minimum self-resonant frequency is 20M Hz. This SMD inductor has a maximum DC current of 1.3 A with a maximum resistance of 140m Ohm. It has an inductance of 15u H. This product is 4.8 mm tall with a diameter of 5.8 mm.

Allied Electronics:
SDR0604 WireWound SMDinductor w/ FerriteCore, 15 uH +/-15%WireWound 1.6A Idc Q:30

安富利:
Ind Power Wirewound 15uH 15% 1KHz 30Q-Factor Ferrite 1.3A T/R

Chip1Stop:
Inductor Power Wirewound 15uH 15% 1KHz 30Q-Factor Ferrite 1.3A 140mOhm DCR T/R

TME:
Inductor: wire; SMD; 15uH; 1.3A; ±15%; Q:30; Ø:5.8mm; H:4.8mm; 140mΩ

Verical:
Inductor Power Unshielded Wirewound 15uH 15% 1KHz 30Q-Factor Ferrite 1.3A 0.14Ohm DCR Automotive T/R

Newark:
# BOURNS  SDR0604-150YL  Surface Mount Power Inductor, SDR0604 Series, 15 µH, 1.3 A, 1.6 A, Unshielded, 0.14 ohm

MASTER:
Inductor Power Wirewound 15uH 15% 1KHz 30Q-Factor Ferrite 1.3A 140mOhm DCR Automotive T/R

Online Components:
Inductor Power Wirewound 15uH 15% 1KHz 30Q-Factor Ferrite 1.3A 140mOhm DCR Automotive T/R

Electro Sonic:
Inductor Power Wirewound 15uH 15% 1KHz 30Q-Factor Ferrite 1.3A 140mOhm DCR Automotive T/R

Win Source:
FIXED IND 15UH 1.3A 140 MOHM SMD
