SDR0604-151KL

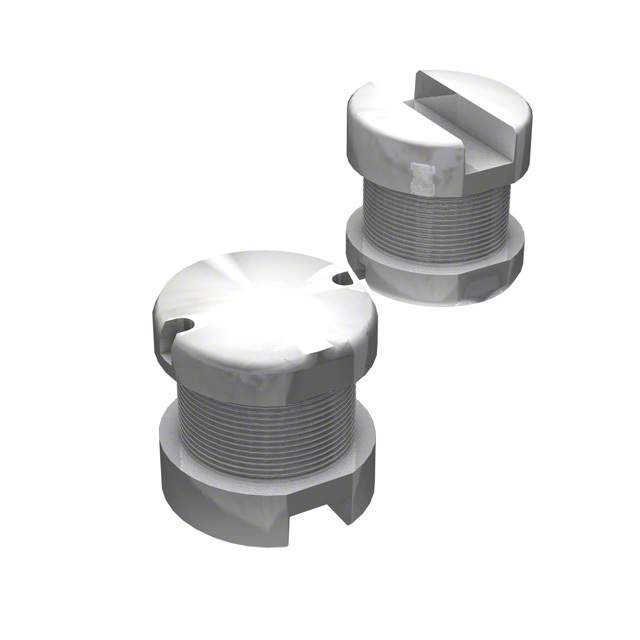

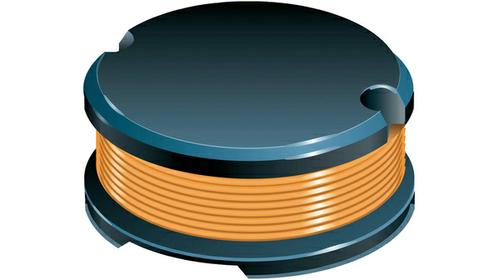

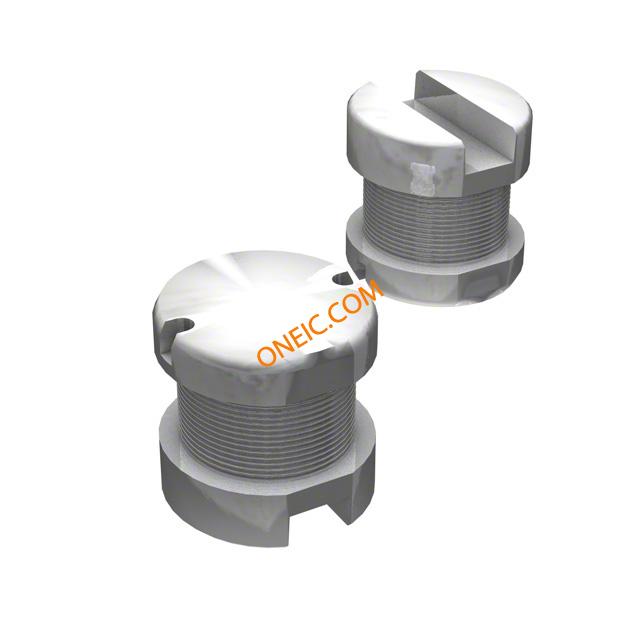

BOURNS  SDR0604-151KL  表面贴装功率电感器, SDR0604系列, 150 µH, ± 10%, 非屏蔽, 1.1 ohm, 400 mA

SDR0604 系列线绕扼流圈

提供 E12 系列

直径小，最大仅 5.8mm

剖面 4.8mm

符合 RoHs

应用于直流/直流转换器的输入/输出以及电源

得捷:
FIXED IND 150UH 400MA 1.1OHM SMD

立创商城:
150uH ±10% 400mA 1.1Ω

欧时:
### SDR0604 系列线绕扼流圈提供 E12 系列 直径小，最大仅 5.8mm 剖面 4.8mm 符合 RoHs 应用于直流/直流转换器的输入/输出以及电源 ### Bourns 非标准表面安装电感器（扼流圈）

e络盟:
功率电感SMD, 150 µH, 400 mA, 非屏蔽, 540 mA, SDR0604 Series, 5.8mm x 5.8mm x 4.8mm

艾睿:
Is space on a PCB a limiting factor for your electronic circuit design? Then use this power SDR0604-151KL surface mount inductor from Bourns to save valuable space. This SMD inductor has a minimum operating temperature of -40 °C and a maximum of 125 °C. This product will be shipped in tape and reel packaging for quick mounting and safe delivery. It has a tolerance of 10%. This product is 4.8 mm tall with a diameter of 5.8 mm. This SMD inductor has a maximum DC current of 400m A with a maximum resistance of 1.1 Ohm. It has an inductance of 150u H. Its test frequency is 1K Hz, while its minimum self-resonant frequency is 6M Hz. This device is made with wirewound technology.

Allied Electronics:
SDR0604 WireWound SMDinductor w/FerriteCore, 150 uH +/-10% 540mA Idc Q:20

安富利:
Ind Power Wirewound 150uH 10% 1KHz 20Q-Factor Ferrite 400mA T/R

Chip1Stop:
Ind Power Wirewound 150uH 10% 1KHz 20Q-Factor Ferrite 400mA T/R

TME:
Inductor: wire; SMD; 150uH; 400mA; ±10%; Q:20; Ø:5.8mm; H:4.8mm; 1.1Ω

Verical:
Inductor Power Unshielded Wirewound 150uH 10% 1KHz 20Q-Factor Ferrite 0.4A 1.1Ohm DCR Automotive T/R

Newark:
# BOURNS  SDR0604-151KL  Surface Mount Power Inductor, SDR0604 Series, 150 µH, 400 mA, 540 mA, Unshielded, 1.1 ohm

MASTER:
Inductor Power Wirewound 150uH 10% 1KHz 20Q-Factor Ferrite 400mA 1.1Ohm DCR Automotive T/R

Online Components:
Inductor Power Wirewound 150uH 10% 1KHz 20Q-Factor Ferrite 400mA 1.1Ohm DCR Automotive T/R

Electro Sonic:
Inductor Power Wirewound 150uH 10% 1KHz 20Q-Factor Ferrite 400mA 1.1Ohm DCR Automotive T/R
