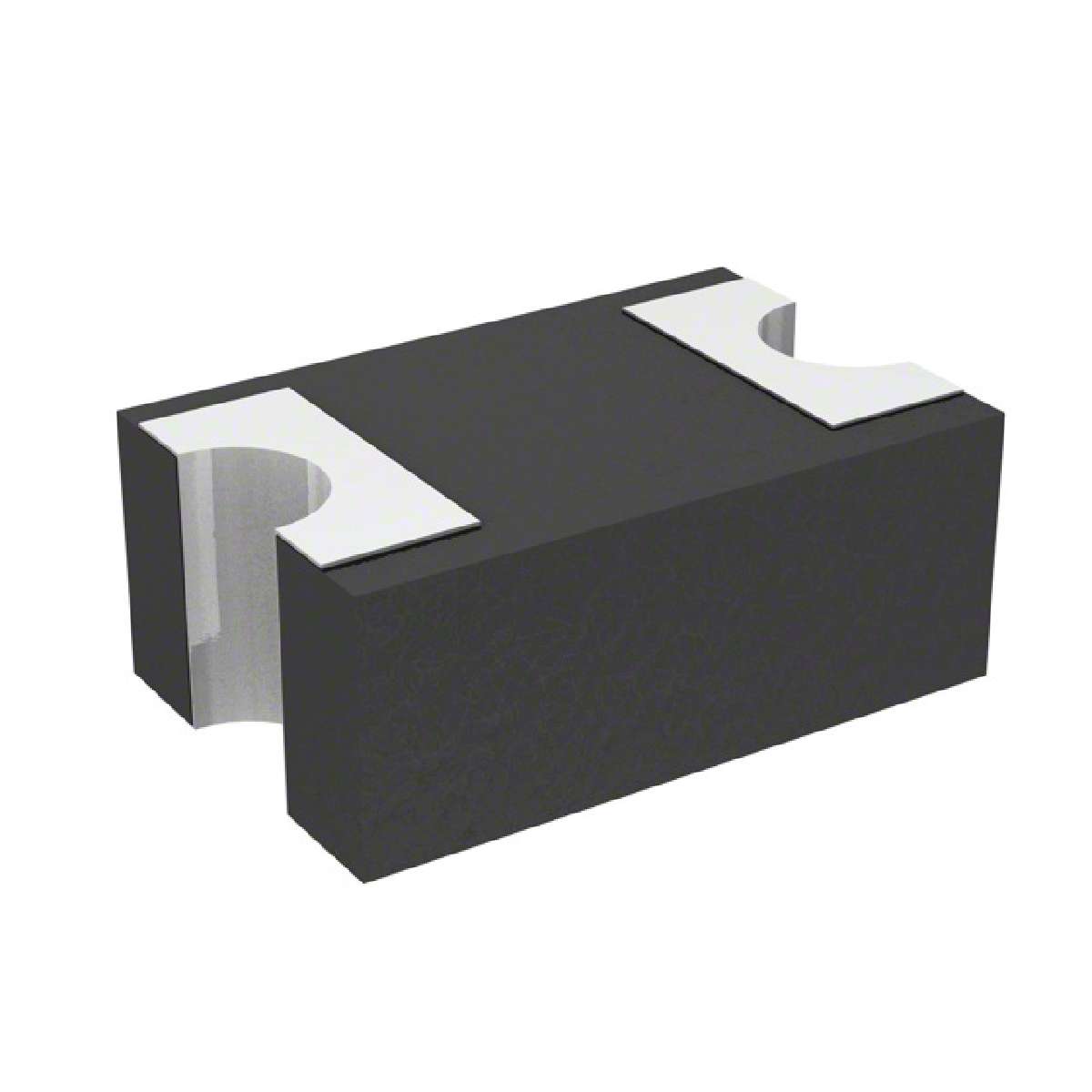

AVX SD0805S040S0R5 肖特基整流器, 单, 40 V, 500 mA, SOD-323, 2 引脚, 480 mV
与整流器
得捷:
DIODE SCHOTTKY 40V 500MA 0805
艾睿:
If your circuit needs to adjust from an AC to DC voltage use a Schottky diode SD0805S040S0R5 rectifier from AVX. Its peak non-repetitive surge current is 5 A, while its maximum continuous forward current is 0.5 A. This rectifier has a minimum operating temperature of -55 °C and a maximum of 125 °C. It is made in a single configuration.
安富利:
Diode Schottky 40V 0.5A 2-Pin Case 0805
Chip1Stop:
Diode Schottky 40V 0.5A 2-Pin Case 0805
Verical:
Rectifier Diode Schottky 40V 0.5A 2-Pin Case 08052012Metric
Newark:
Small Signal Schottky Diode, Single, 40 V, 500 mA, 480 mV, 5 A, 125 C
针脚数 2
正向电压 480mV @500mA
热阻 28℃/W RθJL
正向电流 500 mA
最大正向浪涌电流（Ifsm） 5 A
正向电压Max 480 mV
正向电流Max 0.5 A
工作温度Max 125 ℃
工作温度Min -55 ℃
安装方式 Surface Mount
引脚数 2
封装 0805
封装 0805
工作温度 -55℃ ~ 125℃
产品生命周期 Active
包装方式 Cut Tape CT
制造应用 Aerospace, Defence, Military, Power Management, 工业, Industrial, 国防, 军用与航空, Power Management, Industrial, Aerospace, Defence, Military, 电源管理
RoHS标准 RoHS Compliant
含铅标准 无铅
REACH SVHC标准 No SVHC
军工级 Yes
