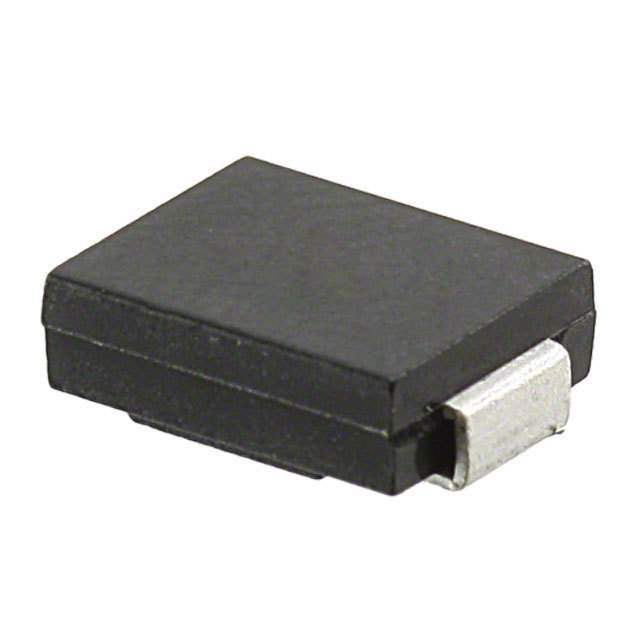

AVX SD3220S100S5R0 肖特基整流器, 单, 100 V, 5 A, DO-214AB, 2 引脚, 850 mV
The is a Schottky Barrier Rectifier Diode in FRP substrate with epoxy under-fill case and solderable lead-free tin-plated per MIL-STD-750 terminals. It offers unique lead-less chip which technology eliminates the lead frame wire bond to give the chip top-bottom symmetry for fewer mounting problems, better heat transfer and current handling capability compared to SOD devices. It is suitable for use in switch mode power supplies, high-frequency rectification and reverse bias protection applications.
- .
- High-current capability
- .
- Low-power loss/high-efficiency
- .
- Halogen-free
针脚数 2
正向电压 0.85 V
热阻 17℃/W RθJL
正向电流 5 A
最大正向浪涌电流（Ifsm） 130 A
正向电压Max 850 mV
正向电流Max 5 A
工作温度Max 125 ℃
工作温度Min -55 ℃
安装方式 Surface Mount
引脚数 2
封装 DO-214AB
封装 DO-214AB
工作温度 -55℃ ~ 125℃
产品生命周期 Active
包装方式 Cut Tape CT
制造应用 国防, 电源管理, Industrial, 工业, 军用与航空, Power Management, Aerospace, Defence, Military
RoHS标准 RoHS Compliant
含铅标准 无铅
REACH SVHC标准 No SVHC
军工级 Yes
REACH SVHC版本 2015/12/17
