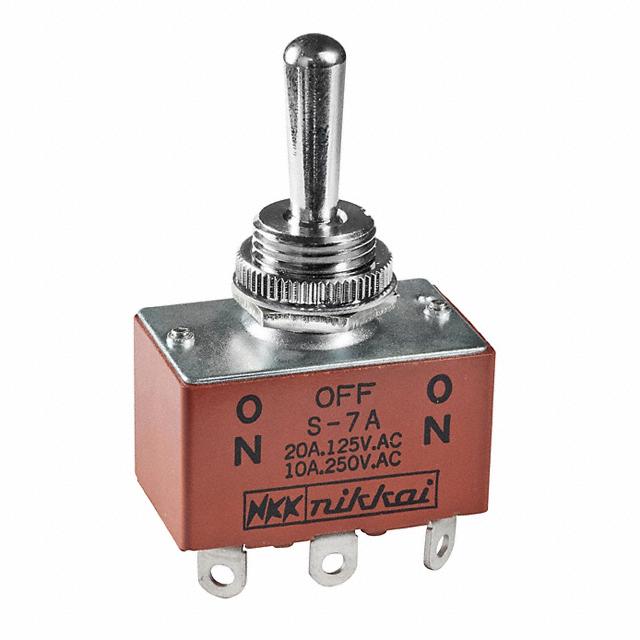

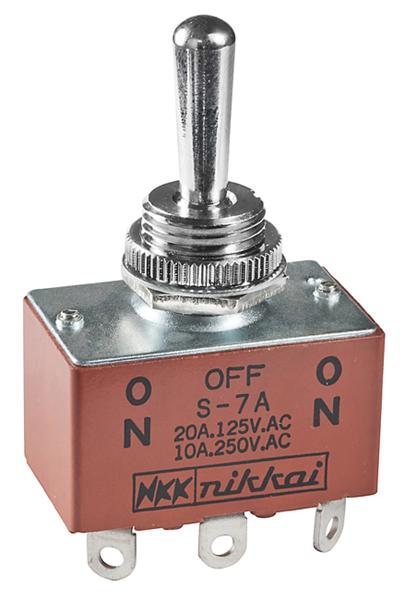

NKK SWITCHES S7A 拨动开关, 标准尺寸, 低至高容量
Series S low capacity standard size toggle switches employ chrome plated brass, steel and phenolic resin in the right places to produce a long lasting lightweight switch. If needed, add "/C" to end of part number to order CSA mark on switch.
Standard size toggles with zinc plated steel covers are sturdily built. The 12mm bushing, with included mounting hardware, fits most panel mount applications. Up to 4 poles with 6 circuits are available. Heat tolerant resin case provides high arc resistance. Long life contact mechanisms in these models assures long life. Solder lug, screw lug, and quick connect terminals are available.
触点电镀 Chrome
额定电压DC 30 V
额定电压AC 125 V
额定电流 20 A
绝缘电阻 1000 MΩ
触点类型 DPDT
额定电流Max 20A @125VAC, 30VDC
工作温度Max 70 ℃
工作温度Min -10 ℃
额定电压 30 V
额定电压DC Max 30 V
额定电压AC Max 250 V
接触电阻Max 10 mΩ
安装方式 Lug, Panel
长度 31.2 mm
宽度 18.6 mm
高度 53.2 mm
触点材质 Silver
工作温度 -30℃ ~ 70℃
产品生命周期 Active
包装方式 Bulk
RoHS标准
含铅标准 Lead Free
REACH SVHC版本 2015/12/17
ECCN代码 EAR99
| 型号/品牌 | 代替类型 | 替代型号对比 |
|---|---|---|
S7A NKK 日本长野 | 当前型号 | 当前型号 |
S7B 日本长野 | 完全替代 | S7A和S7B的区别 |
