S216S02F

SHARP  S216S02F  固态继电器, S216S02系列, 零交叉, 16 A, 电路板, 通孔安装, 80 Vrms, 240 Vrms

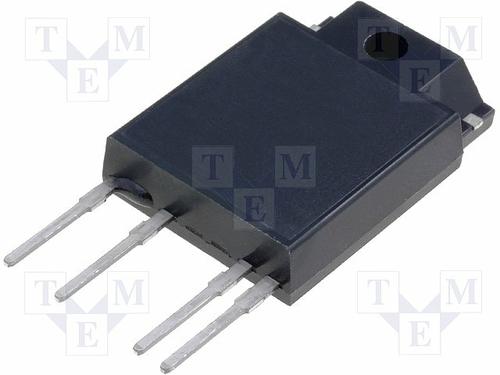

The from is a solid state relay in 4 pin SIP package. This solid state relay is an integration of an infrared emitting diode IRED, a phototriac detector and a main output triac. S216S02F is ideally suited for controlling high voltage AC loads with solid state reliability while providing 4.0kV isolation Visorms from input to output. Applications include isolated interface between high voltage AC devices and lower voltage DC control circuitry, switching motors, fans, heaters, solenoids, valves and power control in applications such as lighting and temperature control equipment.

.

Output current ITrms is 16A

.

Zero crossing functionary

.

High repetitive peak off-state voltage is 600V

.

Screw hole for heat sink

.

Recognized by UL508, file no. E94758 and CSA 22.2 no.14, file No. LR63705

.

Operating temperature range from -25°C to 100°C

.

Load supply voltage is 80V to 240V
