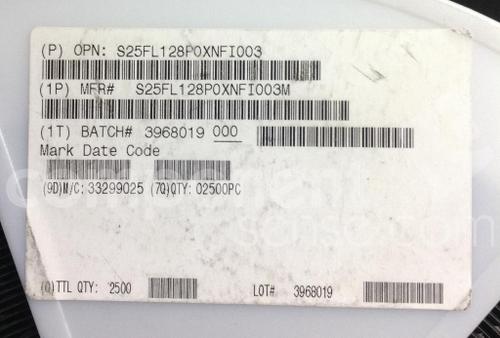

S25FL128P0XNFI003

Flash Memory IC 128M CMOS 3V/104MHz SPI BUS INTERFACE

General Description

The S25FL128P is a 3.0 Volt 2.7V to 3.6V, single-power-supply Flash memory device. The device consists of 64 sectors of 256 KB memory, or 256 sectors of 64 KB memory.

The device accepts data written to SI Serial Input and outputs data on SO Serial Output. The devices are designed to be programmed in-system with the standard system 3.0 volt VCC supply.

The memory can be programmed 1 to 256 bytes at a time, using the Page Program command. The device supports Sector Erase and Bulk Erase commands.

Distinctive Characteristics

Architectural Advantages

 Single power supply operation

   – Full voltage range: 2.7V to 3.6V read and program operations

 Memory Architecture

   – 128Mb uniform 256 KB sector product

   – 128Mb uniform 64 KB sector product

 Program

   – Page Program up to 256 bytes in 1.5 ms typical

   – Faster program time in Accelerated Programming mode8.5 V–9.5 V on #WP/ACC in 1.2 ms typical

 Erase

   – 2 s typical 256 KB sector erase time

   – 0.5 s typical 64 KB sector erase time

   – 128 s typical bulk erase time

   – Sector erase SE command D8h for 256 KB sectors; 20h or D8h for 64KB sectors

   – Bulk erase command C7h for 256 KB sectors; 60h or C7h for 64KB sectors

 Cycling Endurance

   – 100,000 cycles per sector typical

 Data Retention

   – 20 years typical

 Device ID

   – RDID 9Fh, READ_ID 90h and RES ABh commands to read manufacturer and device ID information

   – RES command one-byte electronic signature for backward compatibility

 Process Technology

   – Manufactured on 0.09 µm MirrorBit® process technology

 Package Option

   – Industry Standard Pinouts

   – 16-pin SO package 300 mils

   – 8-Contact WSON Package 6 x 8 mm

Performance Characteristics

 Speed

   – 104 MHz clock rate maximum

 Power Saving Standby Mode

   – Deep Power Down Mode 3 µA typical

   – Standby Mode 200 µA max

Memory Protection Features

 Memory Protection

   – WP#/ACC pin works in conjunction with Status Register Bits to protect specified memory areas

   – 256 KB uniform sector product:

     Status Register Block Protection bits BP2, BP1, BP0 in status

     register configure parts of memory as read-only.

   – 64KB uniform sector product:

     Status Register Block Protection bits BP3, BP2, BP1, BP0 in

     status register configure parts of memory as read-only

Software Features

– SPI Bus Compatible Serial Interface

Hardware Features

 x8 Parallel Programming Mode for 16-pin SO package only
