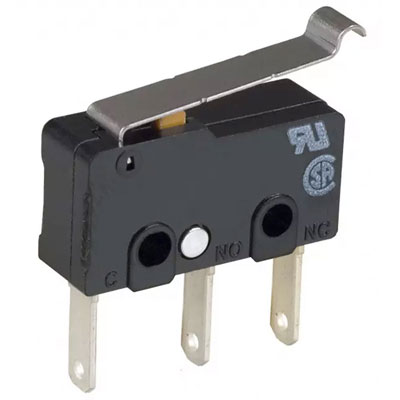

OMRON ELECTRONIC COMPONENTS SS-5GL13T 微动开关, SS系列, SPDT, 快速连接，焊接, 5 A, 125 VAC
The SS series are subminiature basic switches. These switches offer high reliability and security. A variety of models are available with operating force ranging from low to high.
- .
- Switching capacity of 10.1A at 250VAC, 5A at 125VAC, 0.1A at 30VDC
- .
- Pin plunger, hinge, long hinge, simulated roller , hinge roller lever actuators available
- .
- Solder, quick connect, PCB terminals available
- .
- Operating force is 0.06N, 0.12N, 1.47N, 0.49N, 0.25N, 0.16N, 0.08N, 0.39N based on ordering
- .
- SPDT, SPST-NC, SPST-NO contact configuration
- .
- Two split springs ensure a high stability and durability
额定电压DC 30 V
接触器类型 Roller Lever
额定电压AC 125 V
额定电流 5A AC, 4A DC
触点类型 SPDT
额定电流Max 5A @125VAC
工作温度Max 85 ℃
工作温度Min -25 ℃
安装方式 Chassis
封装 125
长度 19.8 mm
宽度 6.4 mm
高度 26.1 mm
封装 125
触点材质 Silver
工作温度 -25℃ ~ 85℃
产品生命周期 Active
包装方式 Bulk
制造应用 工业, Automation & Process Control, 安全, Industrial, 自动化与过程控制, 电源管理, Power Management, Security
RoHS标准 RoHS Compliant
含铅标准 Lead Free
REACH SVHC标准 No SVHC
REACH SVHC版本 2014/06/16
ECCN代码 EAR99
HTS代码 8536507000
| 型号/品牌 | 代替类型 | 替代型号对比 |
|---|---|---|
SS-5GL13T Omron 欧姆龙 | 当前型号 | 当前型号 |
ABS1114509 松下 | 功能相似 | SS-5GL13T和ABS1114509的区别 |
ZM50E70E01 霍尼韦尔 | 功能相似 | SS-5GL13T和ZM50E70E01的区别 |
