SPBT2632C1A.AT2

SPBT2632C1A，蓝牙 V3.0 模块 1 类SPBT2632C1A.AT2 是一款简单的即用型蓝牙 V3.0 模块，可启用无线连接功能。 完整的射频模块采用 AT2 命令集，在 SPP 服务中支持高达 560 kbps 的传输速度，在 iAP 服务中支持高达 250 kbps 的传输速度。 它带有一个嵌入式友好型界面固件，具有可重新编程的闪存。 表面安装的 PCB 模块包含快速 UART 和 16 条通用型 I/O 线路。完全嵌入式蓝牙 ® V3.0，带配置文件 1 类模块 128 位加密安全 范围高达 60 米的瞄准线 集成天线 多点能力 Cortex-M3 微处理器，高达 72MHz（256kb 闪存、48kb RAM 内存） 16 输入/输出线路 AT2 命令集 abSerial 通过 UART 升级固件 符合 FCC 和蓝牙标准 2.5 V 典型电源电压 尺寸 15 x 27 x 2.9 mm ### 蓝牙 - STMicroelectronics

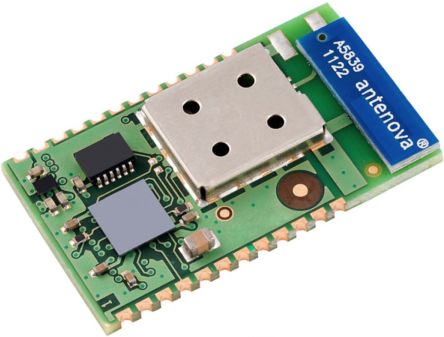

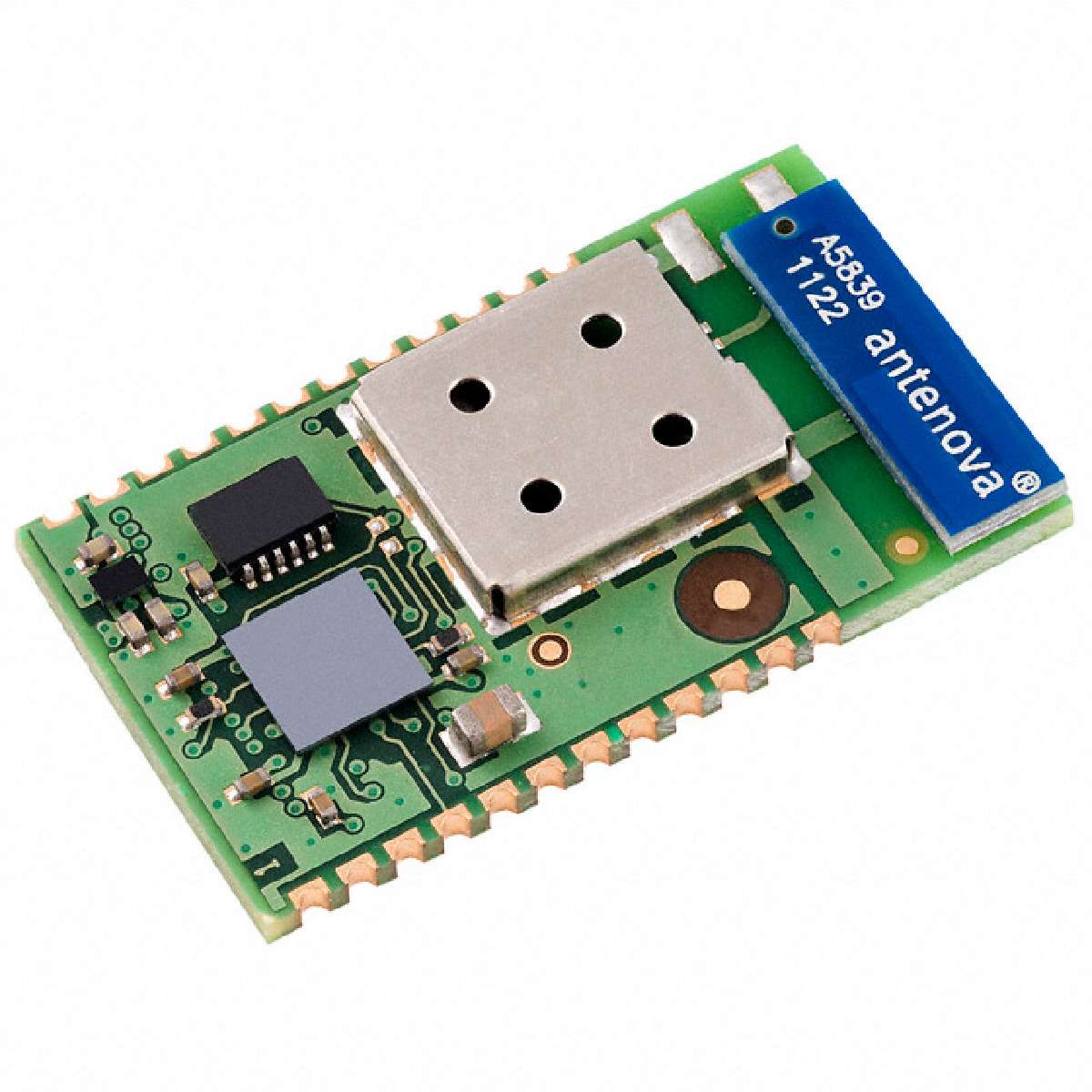

The SPBT2632C1A. AT2 is an easy to use, class 1 Bluetooth V3.0 module. This module enables electronic devices with wireless connectivity, not requiring any RF experience or expertise, for integration into the final product. The SPBT2632C1A. AT2 module, being a certified solution, optimizes the time to market of the final application. It is designed for maximum performance in a minimal space including fast speed UART and 16 general purpose I/O lines, several serial interface options and up to 560Kbps transmission speed with SPP service active, 250Kbps with iAP service active. An optimized design allows the integration of a Bluetooth modem, antenna and low power oscillator for enabling low power mode capability in the minimum possible size. This module provides fully embedded, ready to use Bluetooth wireless technology. The SPBT2532C1A. AT2 provides communication with Android, smart phone and Apple iOS Bluetooth enabled devices.

.

Supports SPP and iAP with AT2 command set

.

ST Micro Cortex-M3 microprocessor with 72MHz clock speed, 256KB flash and 48KB RAM memory

.

FCC and Bluetooth qualified

.

Single voltage supply of 2.5V typically

.

Provides complete RF platform in a small form factor 15mm x 27mm x 2.9mm

.

Firmware upgrade over UART

.

Integrated antenna and multipoint capability

.

128bit encryption security

.

Supports LOS range up to 60m
