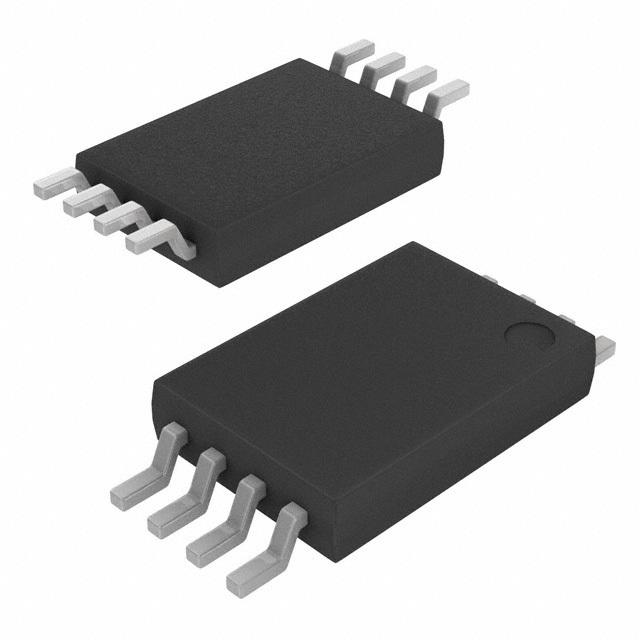

SN74CB3Q3306APWR图片1
SN74CB3Q3306APWR图片2
SN74CB3Q3306APWR图片3
SN74CB3Q3306APWR图片4
SN74CB3Q3306APWR图片5
SN74CB3Q3306APWR图片6
SN74CB3Q3306APWR图片7
SN74CB3Q3306APWR图片8
SN74CB3Q3306APWR图片9
SN74CB3Q3306APWR图片10
SN74CB3Q3306APWR图片11
SN74CB3Q3306APWR图片12
SN74CB3Q3306APWR图片13
SN74CB3Q3306APWR图片14
SN74CB3Q3306APWR概述

TEXAS INSTRUMENTS  SN74CB3Q3306APWR  芯片, 2位, FET, 总线开关, TSSOP-8

The is a dual FET low-voltage high-bandwidth Bus Switch utilizes a charge pump to elevate the gate voltage of the pass transistor, providing a low and flat ON-state resistance ron. The low and flat ON-state resistance allows for minimal propagation delay and supports rail-to-rail switching on the data input/output I/O ports. The device also features low data I/O capacitance to minimize capacitive loading and signal distortion on the data bus. Specifically designed to support high-bandwidth applications, the SN74CB3Q3306A provides an optimized interface solution ideally suited for broadband communications, networking and data-intensive computing systems. It is organized as two 1-bit switches with separate OE 1OE\, 2OE\\ inputs. It can be used as two 1-bit bus switches or as one 2-bit bus switch. When OE\ is low, the associated 1-bit bus switch is ON and the A port is connected to the B port, allowing bidirectional data flow between ports.

.
High-bandwidth data path up to 500MHz
.
5V Tolerant I/Os with device powered up or powered down
.
Low and flat ON-state resistance ron characteristics
.
Rail-to-rail switching on data I/O ports
.
Bidirectional data flow with near-zero propagation delay
.
Low input/output capacitance minimizes loading and signal distortion
.
Data and control inputs provide undershoot clamp diodes
.
0.25mA Typical low power consumption
.
Control inputs can be driven by TTL or 5/3.3V CMOS outputs
.
Ioff Supports partial-power-down mode operation
.
Latch-up performance exceeds 100mA per JESD 78, Class II
.
Supports both digital and analog applications
.
Green product and no Sb/Br
SN74CB3Q3306APWR中文资料参数规格
技术参数

电源电压DC 2.30V ~ 3.60V

输入电压DC 1.70 V

输出电压 5.5 V

输出电流 30 A

触点类型 SPST

通道数 2

针脚数 8

漏源极电阻 4 Ω

位数 2

传送延迟时间 200 ps

极性 Non-Inverting

电压波节 2.50 V, 3.30 V

静态电流 250 µA

带宽 500 MHz

工作温度Max 85 ℃

工作温度Min -40 ℃

电源电压 2.3V ~ 3.6V

电源电压Max 3.6 V

电源电压Min 2.3 V

输入电压 1.7 V

封装参数

安装方式 Surface Mount

引脚数 8

封装 TSSOP-8

外形尺寸

封装 TSSOP-8

物理参数

工作温度 -40℃ ~ 85℃

其他

产品生命周期 Active

包装方式 Tape & Reel TR

符合标准

RoHS标准 RoHS Compliant

含铅标准 Lead Free

REACH SVHC标准 No SVHC

REACH SVHC版本 2015/06/15

海关信息

ECCN代码 EAR99

数据手册

SN74CB3Q3306APWR引脚图与封装图
SN74CB3Q3306APWR引脚图
SN74CB3Q3306APWR封装图

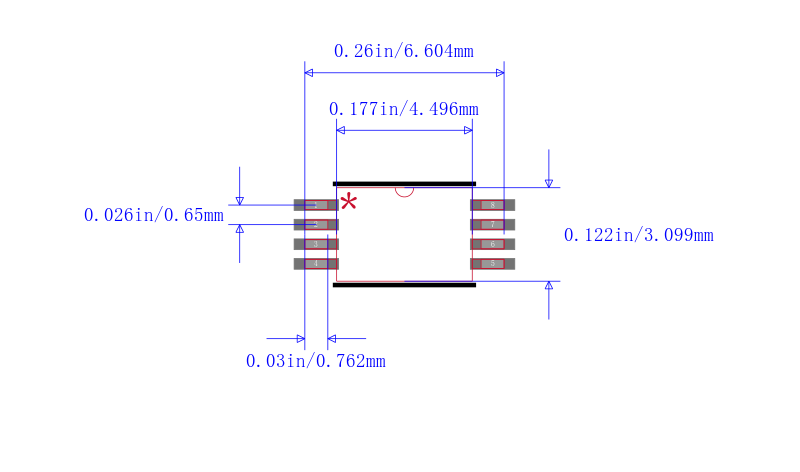

SN74CB3Q3306APWR封装焊盘图
