稳压二极管 ZEN REG .250W PBFR

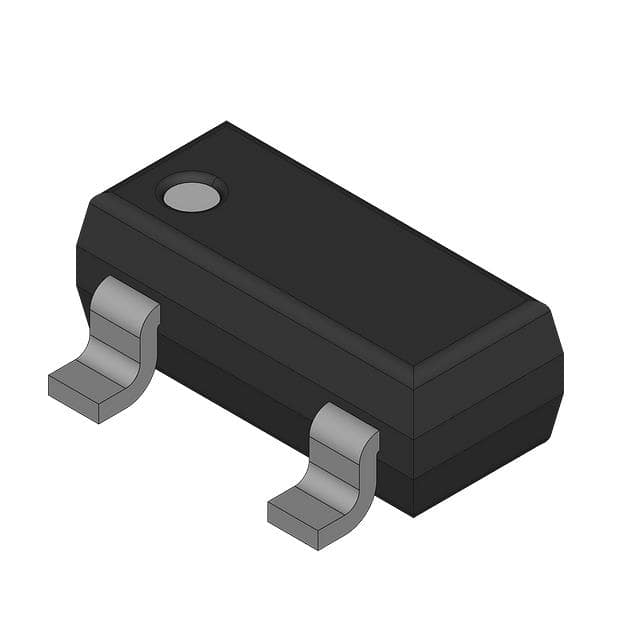

Zener Diode 47V 225mW ±6% Surface Mount SOT-23-3 TO-236
得捷:
DIODE ZENER 47V 225MW SOT23-3
立创商城:
SZBZX84C47LT1G
贸泽:
稳压二极管 ZEN REG .250W PBFR
艾睿:
If you need a diode to operate in the reverse breakdown region then use a voltage regulator SZBZX84C47LT1G zener diode from ON Semiconductor. Its maximum power dissipation is 300 mW. Its maximum leakage current is 0.05 μA. Its test current is 2 mA. This product will be shipped in tape and reel packaging for quick mounting and safe delivery. It is made in a single configuration. This zener diode has an operating temperature range of -65 °C to 150 °C. This zener device has a nominal voltage of 47 V and a voltage tolerance of 6%.
安富利:
Diode Zener Single 47V 6% 300mW 3-Pin SOT-23 T/R
Chip1Stop:
Diode Zener Single 47V 6% 300mW Automotive 3-Pin SOT-23 T/R
Verical:
Zener Diode Single 47V 5% 170Ohm 300mW Automotive 3-Pin SOT-23 T/R
Win Source:
DIODE ZENER 47V 225MW SOT23-3 / Zener Diode 47 V 225 mW ±6% Surface Mount SOT-23-3 TO-236
容差 ±6 %
无卤素状态 Halogen Free
正向电压 900mV @10mA
耗散功率 300 mW
测试电流 2 mA
稳压值 47 V
额定功率Max 225 mW
工作温度Max 150 ℃
工作温度Min -65 ℃
耗散功率Max 300 mW
安装方式 Surface Mount
引脚数 3
封装 SOT-23-3
长度 2.9 mm
宽度 1.3 mm
高度 1 mm
封装 SOT-23-3
工作温度 -55℃ ~ 150℃
温度系数 46.9 mV/K
产品生命周期 Active
包装方式 Tape & Reel TR
RoHS标准 RoHS Compliant
含铅标准 Lead Free
ECCN代码 EAR99
型号/品牌 | 代替类型 | 替代型号对比 |
---|---|---|
SZBZX84C47LT1G ON Semiconductor 安森美 | 当前型号 | 当前型号 |
SZBZX84C47ET1G 安森美 | 类似代替 | SZBZX84C47LT1G和SZBZX84C47ET1G的区别 |
