SN65LVDT122D

1.5 - Gbps的2× 2 LVDS交叉点开关 1.5-Gbps 2 x 2 LVDS CROSSPOINT SWITCH

DESCRIPON

The SN65LVDS122 and SN65LVDT122 are crosspoint switches that use low voltage differential signaling LVDS to achieve signaling rates as high as 1.5 Gbps. They are pin-compatible speed up-grades to the SN65LVDS22 and SN65LVDM22. The internal signal paths maintain differential signaling for high speeds and low signal skews.

FEATURES

• Designed for Signaling Rates1 Up To 1.5 Gbps

• Total Jitter < 65 ps

• Pin-Compatible With SN65LVDS22 and SN65LVDM22

• 25 mV of Receiver Input Threshold Hysteresis Over 0-V to 4-V Common-Mode Range

• Inputs Electrically Compatible With CML, LVPECL and LVDS Signal Levels

• Propagation Delay Times, 900 ps Maximum

• LVDT Integrates 110-Ω Terminating Resistor

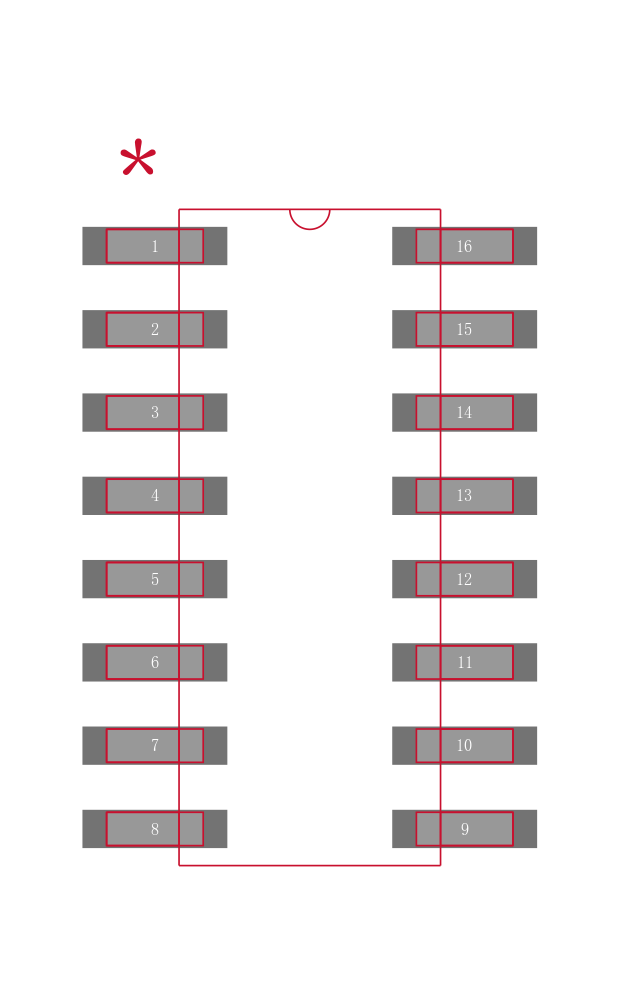

• Offered in SOIC and TSSOP

APPLICATIONS

• 10-G OC-192 Optical Modules

• 622-MHz Central Office Clock Distribution

• Wireless Basestations

• Low Jitter Clock Repeater/Multiplexer

• Protection Switching for Serial Backplanes
