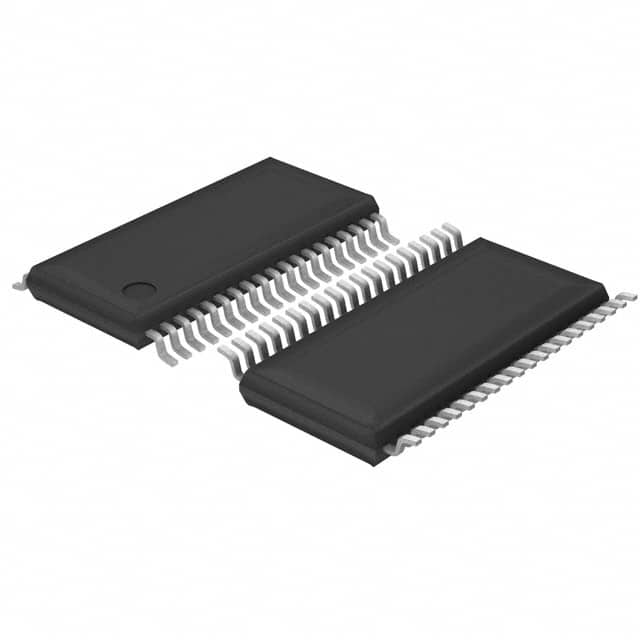

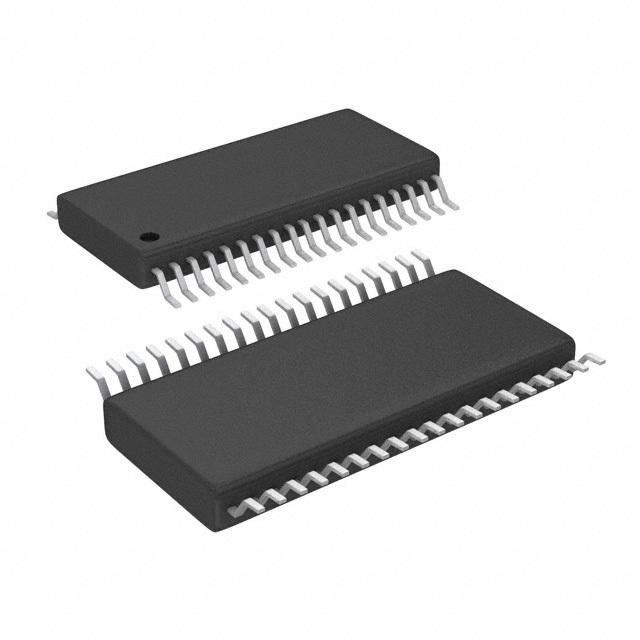

TEXAS INSTRUMENTS SN65LVDS250DBT. 模拟开关, 4 放大器, 3V 至 3.6V, TSSOP, 38 引脚
The SN65LVDS250 and SN65LVDT250 are 4x4 nonblocking crosspoint switches in a flow-through pin-out allowing for ease in PCB layout. Low-voltage differential signaling LVDS is used to achieve a high-speed data throughput while using low power. Each of the output drivers includes a 4:1 multiplexer to allow any input to be routed to any output. Internal signal paths are fully differential to achieve the high signaling speeds while maintaining low signal skews. The SN65LVDT250 incorporates 110- termination resistors for those applications where board space is a premium.
The SN65LVDS250 and SN65LVDT250 are characterized for operation from 40°C to 85°C.
电源电压DC 3.00V min
通道数 4
针脚数 38
工作温度Max 85 ℃
工作温度Min -40 ℃
电源电压 3V ~ 3.6V
电源电压Max 3.6 V
电源电压Min 3 V
安装方式 Surface Mount
引脚数 38
封装 TSSOP-38
封装 TSSOP-38
工作温度 -40℃ ~ 85℃
产品生命周期 Active
包装方式 Each
RoHS标准 RoHS Compliant
含铅标准 Lead Free
REACH SVHC标准 No SVHC
REACH SVHC版本 2015/06/15
ECCN代码 EAR99
| 型号/品牌 | 代替类型 | 替代型号对比 |
|---|---|---|
SN65LVDS250DBT TI 德州仪器 | 当前型号 | 当前型号 |
SN65LVDS250DBTR 德州仪器 | 完全替代 | SN65LVDS250DBT和SN65LVDS250DBTR的区别 |
SN65LVDS250DBTG4 德州仪器 | 完全替代 | SN65LVDS250DBT和SN65LVDS250DBTG4的区别 |
SN65LVDS250DBTRG4 德州仪器 | 完全替代 | SN65LVDS250DBT和SN65LVDS250DBTRG4的区别 |
