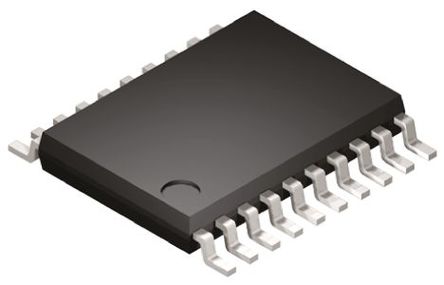

STM8S103F3P3图片1
STM8S103F3P3图片2
STM8S103F3P3图片3
STM8S103F3P3图片4
STM8S103F3P3图片5
STM8S103F3P3图片6
STM8S103F3P3图片7
STM8S103F3P3图片8
STM8S103F3P3图片9
STM8S103F3P3图片10
STM8S103F3P3图片11
STM8S103F3P3图片12
STM8S103F3P3图片13
STM8S103F3P3概述

STM8S 8 位微控制器,STMicroelectronicsSTM8S 系列通用 8 位闪存微控制器是具有一个 3 级管线的 STM8 的高级芯型号。 STM8S 受益于在 24MHz 在操作高达 20MIPS 的高级芯体系架构。 嵌入式 EEPROM、RC 振荡器和完整的外围设备为设计人员提供坚固且可靠的解决方案。 ### STM8 8 位微控制器,STMicroelectronicsSTM8 平台已应用于高性能 8 位核心且是最先进的外围设备。 8 位微控制器以 16/24MHz 操作,具有高达 128kB 闪存、内部 RAM 和 EEPROM、8/16 位计时器、A/D 转换器、D/A 转换器、比较器、串行接口和可选显示控制器。

The STM8S103F2/x3 access line 8-bit microcontrollers offer 8 Kbyte Flash program memory, plus integrated true data EEPROM. The STM8S microcontroller family reference manual RM0016 refers to devices in this family as low-density. They provide the following benefits: performance, robustness, and reduced system cost.

Device performance and robustness are ensured by advanced core and peripherals made in a state-of-the art technology, a 16 MHz clock frequency, robust I/Os, independent watchdogs with separate clock source, and a clock security system.

The system cost is reduced thanks to an integrated true data EEPROM for up to 300 k write/erase cycles and a high system integration level with internal clock oscillators, watchdog and brown-out reset.

Full documentation is offered as well as a wide choice of development tools.

**Key Features**

.
Core
.
16 MHz advanced STM8 core with Harvard architecture and 3-stage pipeline
.
Extended instruction set
.
Memories
.
Program memory: 8 Kbyte Flash; data retention 20 years at 55 °C after 10 kcycle
.
Data memory: 640 byte true data EEPROM; endurance 300 kcycle
.
RAM: 1 Kbyte
.
Clock, reset and supply management
.
2.95 to 5.5 V operating voltage
.
Flexible clock control, 4 master clock sources
.
Low power crystal resonator oscillator
.
External clock input
.
Internal, user-trimmable 16 MHz RC
.
Internal low-power 128 kHz RC
.
Clock security system with clock monitor
.
Power management:
.
Low-power modes wait, active-halt, halt
.
Switch-off peripheral clocks individually
.
Permanently active, low-consumption power-on and power-down reset
.
Interrupt management
.
Nested interrupt controller with 32 interrupts
.
Up to 27 external interrupts on 6 vectors
.
Timers
.
Advanced control timer: 16-bit, 4 CAPCOM channels, 3 complementary outputs, dead-time insertion and flexible synchronization
.
16-bit general purpose timer, with 3 CAPCOM channels IC, OC or PWM
.
8-bit basic timer with 8-bit prescaler
.
Auto wake-up timer
.
Window watchdog and independent watchdog timers
.
Communication interfaces
.
UART with clock output for synchronous operation, SmartCard, IrDA, LIN master mode
.
SPI interface up to 8 Mbit/s
.
I2C interface up to 400 kbit/s
.
Analog to digital converter ADC
.
10-bit, ±1 LSB ADC with up to 5 multiplexed channels, scan mode and analog watchdog
.
I/Os
.
Up to 28 I/Os on a 32-pin package including 21 high sink outputs
.
Highly robust I/O design, immune against current injection
.
Unique ID
.
96-bit unique key for each device
STM8S103F3P3中文资料参数规格
技术参数

频率 16 MHz

针脚数 20

RAM大小 1K x 8

耗散功率 59 mW

模数转换数ADC 1

输入/输出数 16 Input

工作温度Max 125 ℃

工作温度Min -40 ℃

耗散功率Max 238 mW

电源电压 2.95V ~ 5.5V

电源电压Max 5.5 V

电源电压Min 2.95 V

封装参数

安装方式 Surface Mount

引脚数 20

封装 TSSOP-20

外形尺寸

长度 6.6 mm

宽度 4.5 mm

高度 1.05 mm

封装 TSSOP-20

物理参数

工作温度 -40℃ ~ 125℃ TA

其他

产品生命周期 Active

包装方式 Tube

符合标准

RoHS标准 RoHS Compliant

含铅标准 Lead Free

海关信息

ECCN代码 EAR99

数据手册

STM8S103F3P3引脚图与封装图
STM8S103F3P3引脚图
STM8S103F3P3封装图
STM8S103F3P3电路图
STM8S103F3P3封装焊盘图
