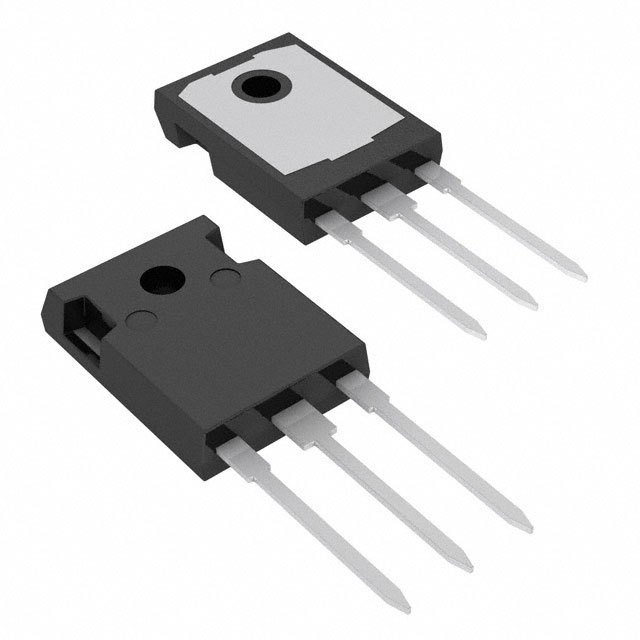

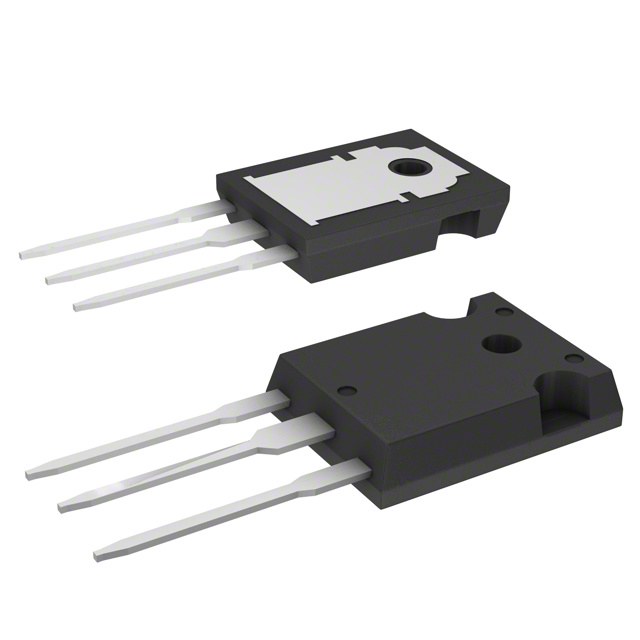

STMICROELECTRONICS STGW38IH130D 单晶体管, IGBT, 63 A, 1.3 kV, 250 W, 1.3 kV, TO-247, 3 引脚
The is a 1300V Very Fast IGBT that developed using advanced PowerMESH™ technology. This process guarantees an excellent trade-off between switching performance and low on-state behaviour. The IGBT is well suited for resonant or soft-switching applications. Improved switch-off energy spread versus increasing temperature result in reduced switching losses.
- .
- Low saturation voltage
- .
- High current capability
- .
- Low switching loss
- .
- Low static and peak forward voltage drop freewheeling diode
- .
- Low VCE sat for reduced conduction losses
- .
- Tight parameter distribution for design simplification and easy paralleling
针脚数 3
耗散功率 250 W
击穿电压集电极-发射极 1300 V
额定功率Max 250 W
工作温度Max 150 ℃
工作温度Min -55 ℃
耗散功率Max 250000 mW
安装方式 Through Hole
引脚数 3
封装 TO-247-3
宽度 5.15 mm
封装 TO-247-3
工作温度 -55℃ ~ 150℃ TJ
产品生命周期 Not Recommended for New Designs
包装方式 Tube
制造应用 Industrial, Microwave, 微波, 工业
RoHS标准 RoHS Compliant
含铅标准 Lead Free
REACH SVHC标准 No SVHC
REACH SVHC版本 2015/12/17
ECCN代码 EAR99
| 型号/品牌 | 代替类型 | 替代型号对比 |
|---|---|---|
STGW38IH130D ST Microelectronics 意法半导体 | 当前型号 | 当前型号 |
STGWS38IH130D 意法半导体 | 类似代替 | STGW38IH130D和STGWS38IH130D的区别 |
IHW30N120R2 英飞凌 | 功能相似 | STGW38IH130D和IHW30N120R2的区别 |
APT25GP120BG 美高森美 | 功能相似 | STGW38IH130D和APT25GP120BG的区别 |
