35 A - 1200 V - 非常快速的IGBT 35 A - 1200 V - very fast IGBT
The IGBT transistor from STMicroelectronics is perfect to use as an electronic switch eliminating the current at the gate. It has a maximum collector emitter voltage of 1200 V. Its maximum power dissipation is 220000 mW. It is made in a single configuration. This IGBT transistor has an operating temperature range of -55 °C to 150 °C.
得捷:
IGBT 1200V 60A 235W TO247
贸泽:
IGBT Transistors PowerMESH IGBT
艾睿:
The STGW35NC120HD IGBT transistor from STMicroelectronics is perfect to use as an electronic switch eliminating the current at the gate. It has a maximum collector emitter voltage of 1200 V. Its maximum power dissipation is 220000 mW. It is made in a single configuration. This IGBT transistor has an operating temperature range of -55 °C to 150 °C.
Chip1Stop:
Trans IGBT Chip N-CH 1.2KV 58A 3-Pin3+Tab TO-247
DeviceMart:
IGBT N-CH 35A 1200V TO-247
耗散功率 220000 mW
击穿电压集电极-发射极 1200 V
反向恢复时间 152 ns
额定功率Max 235 W
工作温度Max 150 ℃
工作温度Min 55 ℃
耗散功率Max 220000 mW
安装方式 Through Hole
引脚数 3

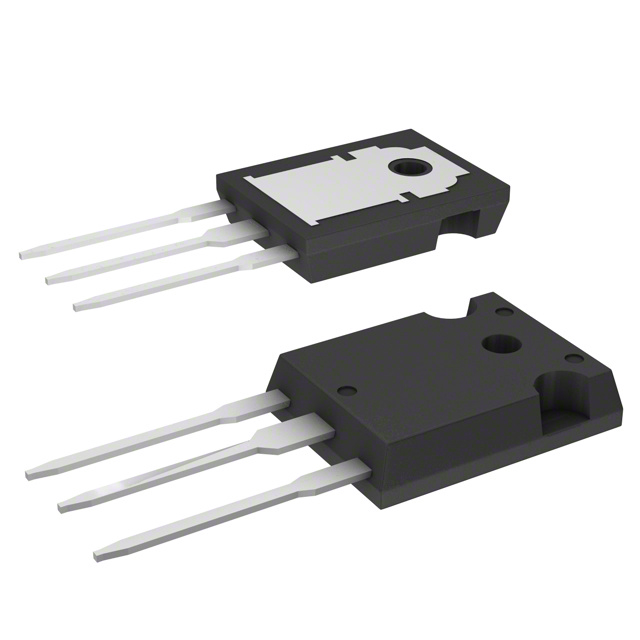

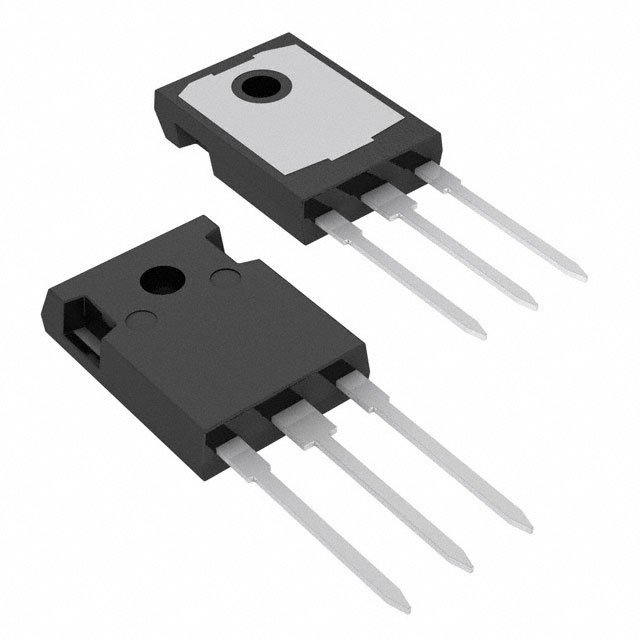

封装 TO-247-3
长度 16.03 mm
宽度 5.16 mm
高度 21.09 mm
封装 TO-247-3
工作温度 -55℃ ~ 150℃ TJ
产品生命周期 Active
包装方式 Tube
RoHS标准 RoHS Compliant
含铅标准 Lead Free
ECCN代码 EAR99
