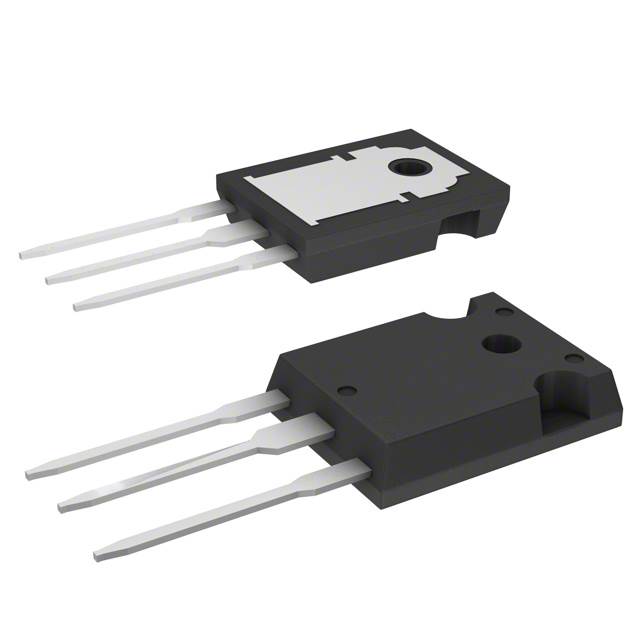

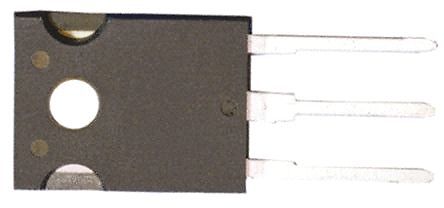

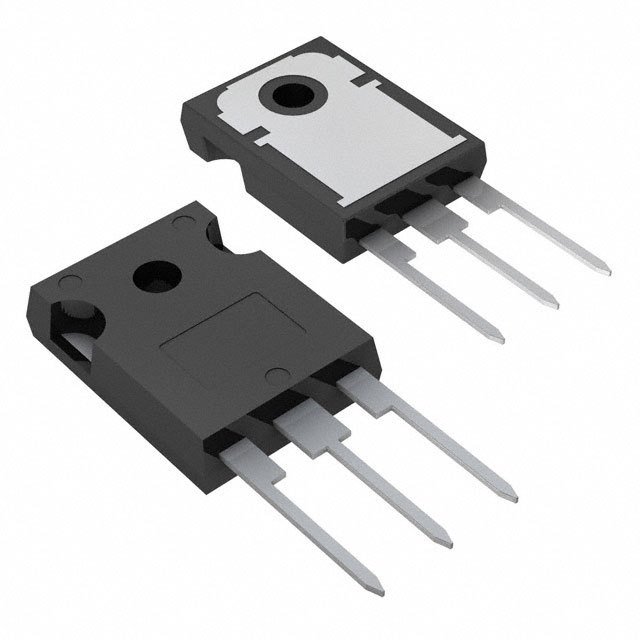

STMICROELECTRONICS STGW50HF60SD 单晶体管, IGBT, 110 A, 600 V, 284 W, 600 V, TO-247, 3 引脚
IGBT 分立,STMicroelectronics
得捷:
IGBT 600V 110A 284W TO247
欧时:
STMicroelectronics IGBT, STGW50HF60SD, 3引脚, TO-247封装, Vce=600 V, 110 A, ±20V
贸泽:
IGBT Transistors 60A 600V Very Low Drop IGBT 600Vces
e络盟:
# STMICROELECTRONICS STGW50HF60SD 单晶体管, IGBT, 110 A, 600 V, 284 W, 600 V, TO-247, 3 引脚
艾睿:
Don&s;t be afraid to step up the amps in your device when using this STGW50HF60SD IGBT transistor from STMicroelectronics. It has a maximum collector emitter voltage of 600 V. Its maximum power dissipation is 284000 mW. In order to ensure parts aren&s;t damaged by bulk packaging, this product comes in tube packaging to add a little more protection by storing the loose parts in an outer tube. It is made in a single configuration. This IGBT transistor has an operating temperature range of -55 °C to 150 °C.
安富利:
Trans IGBT Chip N-CH 600V 110A 3-Pin3+Tab TO-247 Tube
Chip1Stop:
Trans IGBT Chip N-CH 600V 110A 3-Pin3+Tab TO-247 Tube
Newark:
IGBT Single Transistor, 110 A, 600 V, 284 W, 600 V, TO-247, 3 Pins
DeviceMart:
IGBT 600V 60A TO-247
Win Source:
IGBT 600V 110A 284W TO247
针脚数 3
耗散功率 284 W
击穿电压集电极-发射极 600 V
反向恢复时间 67 ns
额定功率Max 284 W
工作温度Max 150 ℃
工作温度Min -55 ℃
耗散功率Max 284 W
安装方式 Through Hole
引脚数 3
封装 TO-247-3
长度 15.75 mm
宽度 5.15 mm
高度 20.15 mm
封装 TO-247-3
工作温度 -55℃ ~ 150℃ TJ
产品生命周期 Active
包装方式 Tube
制造应用 Power Management
RoHS标准 RoHS Compliant
含铅标准 Lead Free
REACH SVHC标准 No SVHC
REACH SVHC版本 2015/12/17
ECCN代码 EAR99
