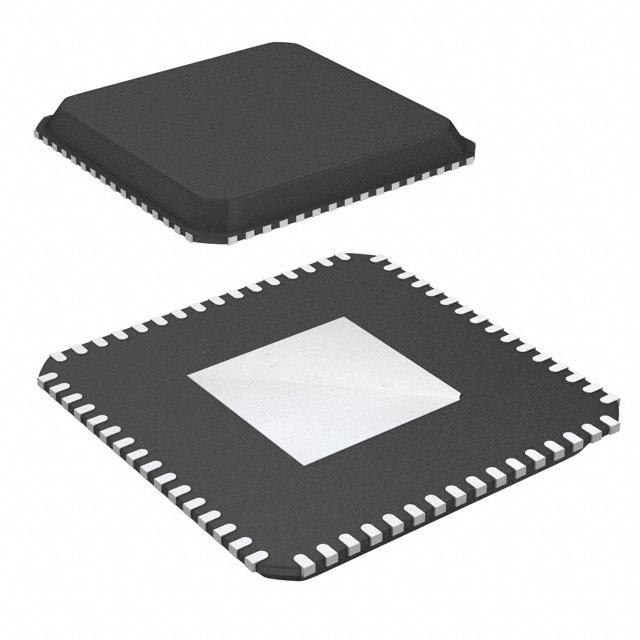

SI5341A-B-GM

时钟发生器, 712.5MHz, 1.71V至3.47V, 10输出, QFN-64

* Generates up to 10 independent output clocks * Ultra-low jitter: * MultiSynth™ technology enables any frequency synthesis on any-output * Highly configurable outputs compatible with LVDS, LVPECL, CML, LVCMOS, HCSL, or programmable voltage * Input frequency range: * External crystal: 25, 48-54 MHz * Differential clock: 10 to 750 MHz * LVCMOS clock: 10 to 250 MHz * Output frequency range: * Differential: 100 Hz to 712.5 MHz * LVCMOS: 100 Hz to 250 MHz * Output-output skew: 20 ps typ * Adjustable output-output delay * Optional zero delay mode * Independent glitchless on-the-fly output frequency changes * DCO mode with frequency steps as low as 0.001 ppb * Independent output clock supply pins: 3.3 V, 2.5 V, or 1.8 V * Built-in power supply filtering and regulation * Status monitoring: LOS, LOL * Serial Interface: I2C or SPI 3-wire or 4-wire * User programmable 2x non-volatile OTP memory * ClockBuilderTM Pro software utility simplifies device configuration and assigns customer part numbers * Si5341: 4 input, 10 output, compact 9x9 mm, 64 QFN * Si5340: 4 input, 4 output, compact 7x7 mm, 44 QFN * Temperature range: –40 to +85 °C * Pb-free, RoHS-6 compliant
