The STM8S903K3/F3 access line 8-bit microcontrollers offer 8 Kbyte Flash program memory, plus integrated true data EEPROM. The STM8S microcontroller family reference manual RM0016 refers to devices in this family as low-density. They provide the following benefits: performance, robustness, and reduced system cost.
Device performance and robustness are ensured by advanced core and peripherals made in a state-of-the art technology, a 16 MHz clock frequency, robust I/Os, independent watchdogs with separate clock source, and a clock security system.
The system cost is reduced thanks to an integrated true data EEPROM for up to 300 k write/erase cycles and a high system integration level with internal clock oscillators, watchdog and brown-out reset.
Full documentation is offered as well as a wide choice of development tools.
**Key Features**
-
.
-
Core
-
.
-
16 MHz advanced STM8 core with Harvard architecture and 3-stage pipeline
-
.
-
Extended instruction set
-
.
-
Memories
-
.
-
Program memory: 8 Kbyte Flash; data retention 20 years at 55 °C after 10 kcycle
-
.
-
Data memory: 640 byte true data EEPROM; endurance 300 kcycle
-
.
-
RAM: 1 Kbyte
-
.
-
Clock, reset and supply management
-
.
-
2.95 to 5.5 V operating voltage
-
.
-
Flexible clock control, 4 master clock sources
-
.
-
Low power crystal resonator oscillator
-
.
-
External clock input
-
.
-
Internal, user-trimmable 16 MHz RC
-
.
-
Internal low-power 128 kHz RC
-
.
-
Clock security system with clock monitor
-
.
-
Power management:
-
.
-
Low-power modes wait, active-halt, halt
-
.
-
Switch-off peripheral clocks individually
-
.
-
Permanently active, low-consumption power-on and power-down reset
-
.
-
Interrupt management
-
.
-
Nested interrupt controller with 32 interrupts
-
.
-
Up to 28 external interrupts on 7 vectors
-
.
-
Timers
-
.
-
Advanced control timer: 16-bit, 4 CAPCOM channels, 3 complementary outputs, dead-time insertion and flexible synchronization
-
.
-
16-bit general purpose timer, with 3 CAPCOM channels IC, OC or PWM
-
.
-
8-bit basic timer with 8-bit prescaler
-
.
-
Auto wake-up timer
-
.
-
Window watchdog and independent watchdog timers
-
.
-
Communication interfaces
-
.
-
UART with clock output for synchronous operation, SmartCard, IrDA, LIN master mode
-
.
-
SPI interface up to 8 Mbit/s
-
.
-
I2C interface up to 400 kbit/s
-
.
-
Analog to digital converter ADC
-
.
-
10-bit, ±1 LSB ADC with up to 7 multiplexed channels + 1 internal channel, scan mode and analog watchdog
-
.
-
Internal reference voltage measurement
-
.
-
I/Os
-
.
-

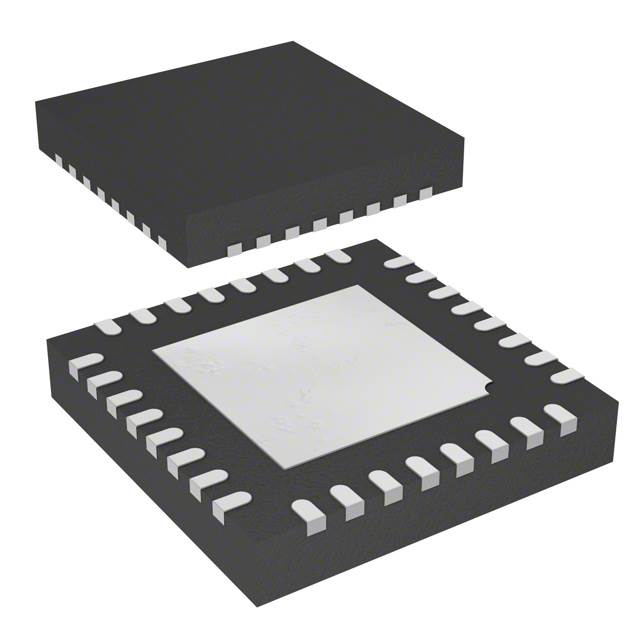

Up to 28 I/Os on a 32-pin package including 21 high sink outputs
-
.
-
Highly robust I/O design, immune against current injection
-
.
-
Unique ID
-
.
-
96-bit unique key for each device
