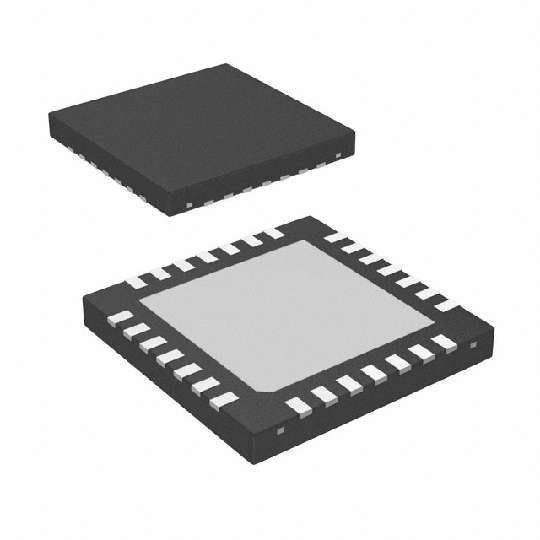

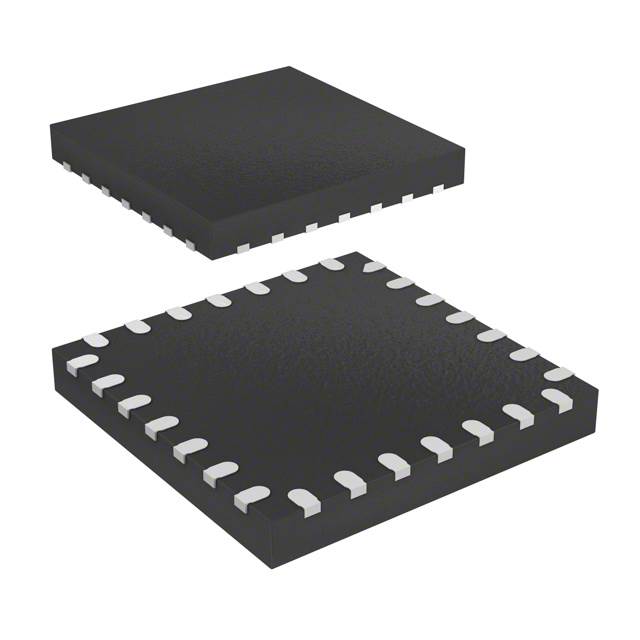

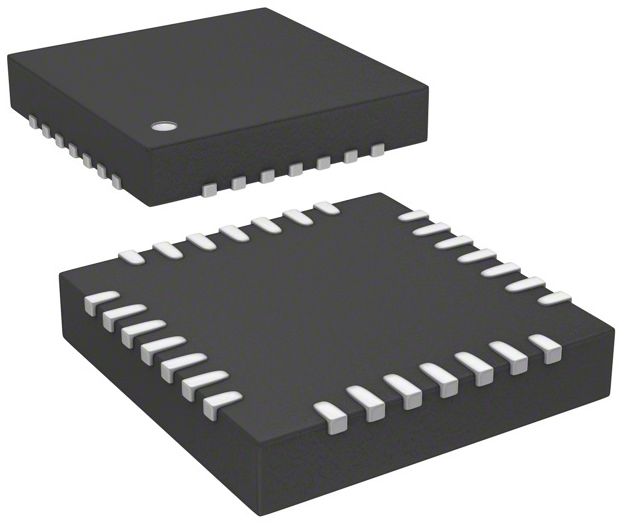

STM8 系列 8 位 16 kB 闪存 1 KB RAM 16 MHz 微控制器 - UFQFPN-28
The STM8TL52x4 and STM8TL53x4 devices feature the enhanced STM8 CPU core providing increased processing power up to 16 MIPS at 16 MHz while maintaining the advantages of a CISC architecture with improved code density, a 24-bit linear addressing space and an optimized architecture for low power operations. It uses a ProxSense charge transfer capacitive acquisition method that is capable of near range proximity detection.
The family includes an integrated debug module with a hardware interface SWIM which allows non-intrusive in-application debugging and ultrafast Flash programming. All STM8TL52x4 and STM8TL53x4 microcontrollers feature low-power low-voltage single-supply program Flash memory.
The STM8TL52x4 and STM8TL53x4 devices are based on a generic set of state-of-the-art peripherals. The modular design of the peripheral set allows the same peripherals to be found in different ST microcontroller families including 32-bit families. This makes any transition to a different family very easy, and simplified even more by the use of a common set of development tools.
**Key Features**
- .
- Operating conditions
- .
- Operating power supply: 1.65 V to 3.6 V
- .
- Temperature range: –40 °C to 85 °C
- .
- Low power features
- .
- 4 low power modes: Wait, Active-halt with AWU 1 μA, Active-halt with ProxSense™ 10 μA with scan every 200 ms,Halt 0.4 μA
- .
- Dynamic power consumption: 150 μA/MHz
- .
- Fast wakeup from Halt mode: 4.7 μs
- .
- Ultra-low leakage per I/O: 50 nA
- .
- Advanced STM8 Core
- .
- Harvard architecture with 3-stage pipeline
- .
- Max freq.16 MHz,16 CISC MIPS peak
- .
- Memories
- .
- Up to 16 Kbyte of Flash program including up to 2 Kbyte of data EEPROM
- .
- Error correction code ECC
- .
- Flexible write and read protection modes
- .
- In-application and in-circuit programming
- .
- Data EEPROM capability
- .
- 4 Kbyte of static RAM
- .
- Clock management
- .
- Internal 16 MHz factory-trimmed RC
- .
- Internal 38 kHz low consumption RC driving both the IWDG and the AWU
- .
- Reset and supply management
- .
- Ultra-low-power, ultra safe power-on reset/ power-down reset
- .
- Interrupt management
- .
- Nested interrupt controller with software priority control
- .
- Up to 22 external interrupt sources
- .
- I/Os
- .
- Up to 23 with 22 mappable on external interrupt vectors
- .
- I/Os with programmable input pull-ups, high sink/source capability
- .
- ProxSense™ patented acquisition technology with up to 300 touch sensing channels 20 receiver/transmitter channels and 15 transmitter channels supporting projected capacitive acquisition method suitable for proximity detection.
- .
- Timers
- .
- Two 16-bit general purpose timers TIM2 and TIM3 with up and down counter and two channels used as IC, OC, PWM
- .
- One 8-bit timer TIM4 with 7-bit prescaler
- .
- Independent watchdog
- .
- Window watchdog
- .
- Auto-wakeup unit
- .
- Beeper timer with 1, 2 or 4 kHz frequencies
- .
- Communication interfaces
- .
- SPI synchronous serial interface
- .
- Fast I2C Multimaster/slave 400 kHz
- .
- USART with fractional baud rate generator
- .
- Development support
- .
- Hardware single wire interface module SWIM
- .
- In-circuit emulation ICE
