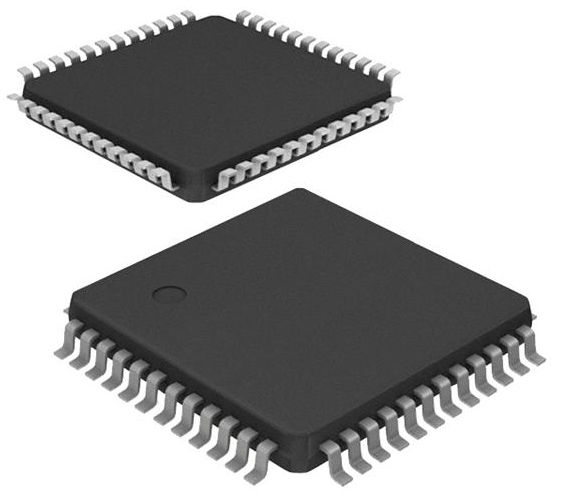

STM8AF6248TDX

汽车级8位MCU

Introduction

This datasheet refers to the STM8AF61xx STM8AF612x, STM8AF614x, STM8AF6166, and STM8AF6168 and STM8AF62xx products with 16 to 32 Kbytes of Flash program memory.

In the order code, the letter ‘F’ refers to product versions with data EEPROM and ‘H’ refers to product versions without data EEPROM. The identifiers ‘F’ and ‘H’ do not coexist in a given order code. The datasheet contains the description of family features, pinout, electrical characteristics,

mechanical data and ordering information.

● For complete information on the STM8A microcontroller memory, registers and peripherals, please refer toSTM8S and STM8A microcontroller families reference manual RM0016.

● For information on programming, erasing and protection of the internal Flash memory please refer to the STM8 Flash programming manual PM0051.

● For information on the debug and SWIM single wire interface module refer to the STM8 SWIM communication protocol and debug module user manual UM0470.

● For information on the STM8 core, please refer to the STM8 CPU programming manual PM0044.
