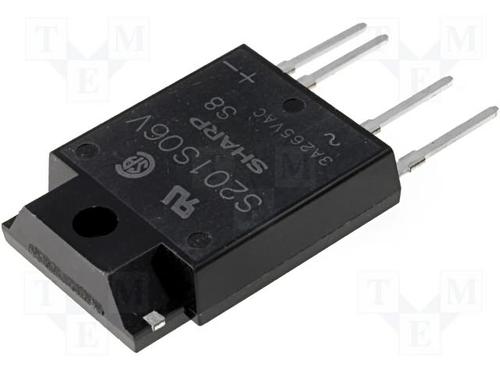

SHARP S201S06F 固态继电器, S201S06系列, 零交叉, 3 A, 电路板, 通孔安装, 80 Vrms, 240 Vrms
The is a Solid State Relay with zero crossing switching mode and through hole terminals. This PCB mount relay is an integration of an infrared emitting diode IRED, a phototriac detector and a main output triac. Ideally suited for controlling high voltage AC loads with solid state reliability while providing 4kV isolation Visorms from input to output.
- .
- Screw hole for heat sink
- .
- Lead-free terminal components
- .
- 3kVrms Isolation voltage
- .
- 1.5V On-state voltage
- .
- 10ms Turn-on/off maximum time
- .
- -25 to 100°C Operating temperature range
输入电压DC 1.40 V
输出电流 ≤3.00 A
触点类型 SPST-NO
负载电流 3 A
输入电流 0.1 mA
输入电压Max 1.4 V
输出电压Max 600 V
输入电流Min 50 mA
工作温度Max 100 ℃
工作温度Min -25 ℃
工作电压Min 80 Vrms
工作电压Max 240 Vrms
输入电压 1.2 VDC
安装方式 Through Hole
引脚数 4
封装 SIP-4
长度 18.5 mm
宽度 5.5 mm
高度 19.6 mm
封装 SIP-4
产品生命周期 Not Recommended for New Design
包装方式 Tube
制造应用 HVAC, 电机驱动与控制, Automation & Process Control, 自动化与过程控制, 照明, Lighting, Motor Drive & Control
RoHS标准 RoHS Compliant
含铅标准 Lead Free
| 型号/品牌 | 代替类型 | 替代型号对比 |
|---|---|---|
S201S06F Sharp 夏普 | 当前型号 | 当前型号 |
D2W203F 快达 | 功能相似 | S201S06F和D2W203F的区别 |
