STM8S208S6T6C

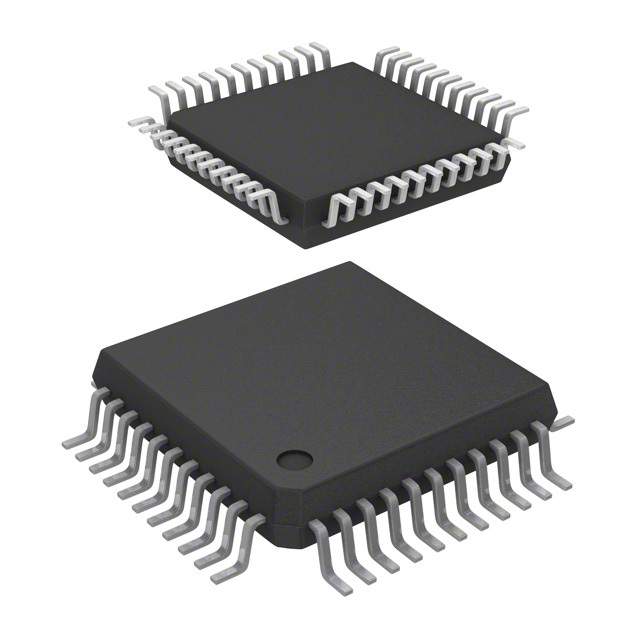

STM8 系列 8 位 32 kB 闪存 6 kB RAM 24 MHz 微控制器 - LQFP-44

The STM8S20xxx performance line 8-bit microcontrollers offer from 32 to 128 Kbytes Flash program memory. They are referred to as high-density devices in the STM8S microcontroller family reference manual.

All STM8S20xxx devices provide the following benefits: reduced system cost, performance robustness, short development cycles, and product longevity.

The system cost is reduced thanks to an integrated true data EEPROM for up to 300 k write/erase cycles and a high system integration level with internal clock oscillators, watchdog, and brown-out reset.

Device performance is ensured by 20 MIPS at 24 MHz CPU clock frequency and enhanced characteristics which include robust I/O, independent watchdogs with a separate clock source, and a clock security system.

Short development cycles are guaranteed due to application scalability across a common family product architecture with compatible pinout, memory map and modular peripherals. Full documentation is offered with a wide choice of development tools.

Product longevity is ensured in the STM8S family thanks to their advanced core which is made in a state-of-the art technology for applications with 2.95 V to 5.5 V operating supply.

**Key Features**

.

Core

.

Max fCPU : up to 24 MHz, 0 wait states @ fCPU ≤ 16 MHz

.

Advanced STM8 core with Harvard architecture and 3-stage pipeline

.

Extended instruction set

.

Max 20 MIPS @ 24 MHz

.

Memories

.

Program: up to 128 Kbytes Flash; data retention 20 years at 55 °C after 10 kcycles

.

Data: up to 2 Kbytes true data EEPROM; endurance 300 kcycles

.

RAM: up to 6 Kbytes

.

Clock, reset and supply management

.

2.95 to 5.5 V operating voltage

.

Low power crystal resonator oscillator

.

External clock input

.

Internal, user-trimmable 16 MHz RC

.

Internal low power 128 kHz RC

.

Clock security system with clock monitor

.

Wait, active-halt, & halt low power modes

.

Peripheral clocks switched off individually

.

Permanently active, low consumption power-on and power-down reset

.

Interrupt management

.

Nested interrupt controller with 32 interrupts

.

Up to 37 external interrupts on 6 vectors

.

Timers

.

2x 16-bit general purpose timers, with 2+3 CAPCOM channels IC, OC or PWM

.

Advanced control timer: 16-bit, 4 CAPCOM channels, 3 complementary outputs, dead-time insertion and flexible synchronization

.

8-bit basic timer with 8-bit prescaler

.

Auto wakeup timer

.

Window watchdog, independent watchdog

.

Communications interfaces

.

High speed 1 Mbit/s active beCAN 2.0B

.

UART with clock output for synchronous operation - LIN master mode

.

UART with LIN 2.1 compliant, master/slave modes and automatic resynchronization

.

SPI interface up to 10 Mbit/s

.

I2 C interface up to 400 Kbit/s

.

10-bit ADC with up to 16 channels

.

I/Os

.

Up to 68 I/Os on an 80-pin package including 18 high sink outputs

.

Highly robust I/O design, immune against current injection

.

Development support

.

Single wire interface module SWIM and debug module DM

.

96-bit unique ID key for each device
